SKF

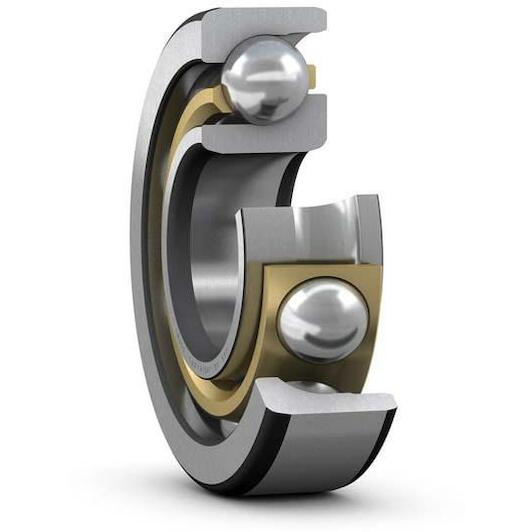

SKF 7310 ACCBM single-row angular contact ball bearing with 25° contact angle 50 mm

Recommended Retail Price €523.35
258.95 tax incl.
€214.01 excl. VAT (incl. all environmental contributions)
On order: delivered from 23/05/2026
each

  • Ordered before 20:00 - delivered as of 23/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings, with 25° contact angle, accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They have Normal axial internal clearance and are suitable for universal matching, where two bearings can be arranged back-to-back or face-to-face. They have a ball-centred brass cage. They can operate at 20% higher speeds than equivalent bearings with 40° contact angle.

  • 25° contact angle
  • Brass cage
  • Suitable for universal matching
  • Can operate at very high speeds
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 50 mm
  • Width: 27 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (cage): Brass (solid)
  • Outer diameter: 110 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577395337
  • Supplier number: SKF 7310 ACCBM
Inner diameter
50 mm
Width
27 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (cage)
Brass (solid)
Outer diameter
110 mm
Matched arrangement
No
Ring type
One-piece inner and outer rings
Contact type
Normal contact (two-point contact)
Basic static load rating
57
Lubricant
None
Relubrication feature
Without
Reference speed
8000
Skf performance class
SKF Explorer
Sealing
Without
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
50
Contact angle
25
Limiting speed
12000
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
83
Coating
Without
Outside diameter
110
Universal matching bearing
Yes
