SKF

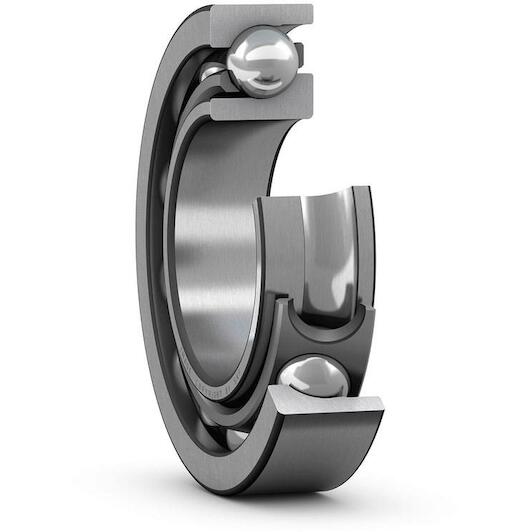

SKF 7313 BEGAF single-row angular contact ball bearing 65 x 140 x 33 mm with contact angle 40°

Recommended Retail Price €941.89
466.20 tax incl.
€385.29 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 65 mm
  • Width: 33 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Steel (solid)
  • Outer diameter: 140 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576634505
  • Supplier number: SKF 7313 BEGAF
Inner diameter
65 mm
Width
33 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Steel (solid)
Outer diameter
140 mm
Basic static load rating
80
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
6000
Axial internal clearance
Not applicable
Cage
Machined steel
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
65
Contact angle
40
Limiting speed
5600
Matched condition (axial clearance/ preload)
Light preload
Basic dynamic load rating
108
Coating
Without
Outside diameter
140
Universal matching bearing
Yes
