skf_7315bem1s0vq335
SKF

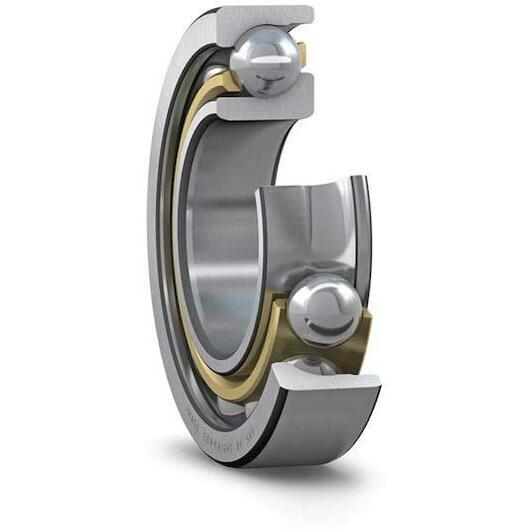

SKF 7315 BEM1/S0VQ335 single-row angular contact ball bearing 75 mm

Recommended Retail Price €1,198.81
593.40 tax incl.
€490.41 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 37 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Seal (bearing): Without seal
  • Outer diameter: 160 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570592474
  • Supplier number: SKF 7315 BEM1/S0VQ335
Inner diameter
75 mm
Width
37 mm
Number of rows
1
Axial clearance
Not applicable
Seal (bearing)
Without seal
Outer diameter
160 mm
Basic static load rating
98
Ring type
One-piece inner and outer rings
Tolerance class
Normal
Contact type
Normal contact (two-point contact)
Reference speed
5300
Matched arrangement
No
Relubrication feature
Without
Sealing
Without
Lubricant
None
Cage
Machined brass
Material, bearing
Bearing steel
Locating feature, bearing outer ring
None
Bore diameter
75
Contact angle
40
Limiting speed
5000
Basic dynamic load rating
125
Coating
Without
Outside diameter
160
Universal matching bearing
No
