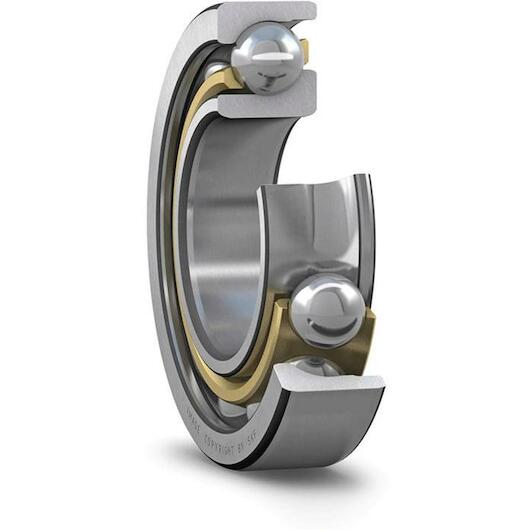

SKF 7334 BCBM single-row angular contact ball bearing 170 x 360 x 72 mm with contact angle 40°

Supplier number: SKF 7334 BCBM | EAN 7316576651168
Recommended Retail Price €11,435.49
5,661.60 tax incl.
€4,679.01 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Ordered before 20:00 - delivered as of 22/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€5,661.60
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 170 mm
  • Width: 72 mm
  • Number of rows: 1
  • Axial clearance: Not applicable
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Material (cage): Brass (solid)
  • Outer diameter: 360 mm

Product description

These single row angular contact ball bearings can accommodate radial and axial loads acting simultaneously, where the axial load acts in one direction only. They can operate at high speeds and, depending on the variant, even very high speeds. They are more suitable than deep groove ball bearings for supporting large axial forces acting in one direction.

  • High-speed capability
  • Accommodate relatively high radial loads and large unilateral axial loads

Documents

All Features

Inner diameter
170 mm
Width
72 mm
Number of rows
1
Axial clearance
Not applicable
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Material (cage)
Brass (solid)
Outer diameter
360 mm
Basic static load rating
490
Locating feature, bearing outer ring
None
Ring type
One-piece inner and outer rings
Tolerance class
Class P6 (P6)
Contact type
Normal contact (two-point contact)
Lubricant
None
Matched arrangement
No
Relubrication feature
Without
Reference speed
2200
Axial internal clearance
Not applicable
Cage
Machined brass
Material, bearing
Bearing steel
Sealing
Without
Bore diameter
170
Contact angle
40
Limiting speed
2600
Matched condition (axial clearance/ preload)
Axial clearance CB
Basic dynamic load rating
390
Coating
Without
Outer diameter
360
Universal matching bearing
Yes
  • Brand SKF
  • EAN 7316576651168
  • Supplier number SKF 7334 BCBM
