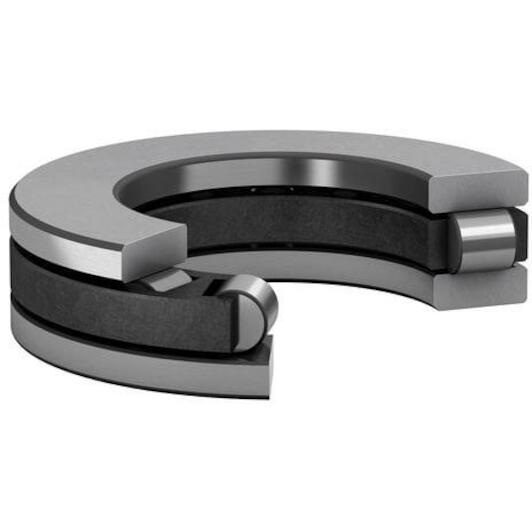

SKF 81206 TN single-row cylindrical roller bearing single acting 30 x 52 mm

Supplier number: SKF 81206 TN | EAN 7316577736895

Recommended Retail Price €159.87

78.95 tax incl.

€65.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Ordered before 20:00 - delivered as of 30/09/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable axial support with Skf

Practical benefits

High axial capacity: This cylindrical roller thrust design effortlessly accommodates heavy single-direction axial and shock loads in tight spaces.
Smooth polyamide cage: The lightweight polymer cage minimizes friction and wear, ensuring you achieve quiet and efficient operation.
Quick separable mounting: Thanks to the fully separable components, you can mount the shaft and housing washers independently.

In a nutshell

The right choise for

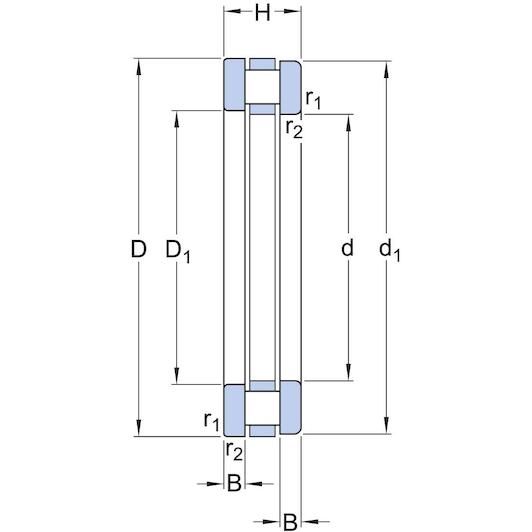

With the Skf 81206 tn cylindrical roller thrust bearing, you can easily accommodate heavy single-direction axial and shock loads in tight spaces. Featuring a 30 mm bore, 52 mm outside diameter, and 16 mm width, this single-row bearing delivers exceptional rigidity and precise shaft location with minimal deflection. The lightweight polyamide cage reduces internal friction and wear, ensuring smooth and quiet operation. Thanks to the fully separable design, you can mount the shaft and housing washers quickly and independently. It is the dependable choice for gearboxes, machine tool spindles, extruders, and industrial presses requiring rigid axial support.

Product information FAQ

€78.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 52 mm

Product description

Single row cylindrical roller thrust bearings are designed to accommodate heavy axial loads and peak loads in one direction, but not radial loads. They provide a high degree of stiffness and require little axial space. They are mainly used in applications where thrust ball bearings do not have sufficient load carrying capacity. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

High axial load carrying capacity
High stiffness
Long service life
Require little axial space
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 16 mm
Number of rows: 1
Material (cage): Plastic
Outer diameter: 52 mm
Bore diameter: 30
Cage: Non-metallic
Reference speed: 2400
Basic static load rating: 134
Tolerance class: Normal
Bearing part: Complete bearing
Limiting speed: 4800
Axial load capability: Single-direction
Coating: Without
Basic dynamic load rating: 50
Height: 16
Outside diameter: 52
Material, bearing: Bearing steel

Brand SKF
01295389
EAN 7316577736895
Supplier number SKF 81206 TN

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF 81206 TN thrust bearing?: The bearing has a 30 mm bore diameter, a 52 mm outside diameter, and an overall width of 16 mm.
What type of load can this cylindrical roller thrust bearing handle?: It is designed for heavy axial loads in a single direction and must not be subjected to radial loads.
What material is the cage made of?: The cage of this SKF 81206 TN bearing is made of high-grade plastic (polyamide).
Is this SKF bearing separable for easy installation?: Yes, the separable design lets you mount the bearing rings and the roller and cage assembly independently.
