What are the dimensions of this needle roller thrust bearing?

The SKF AXK 90120 has an inside diameter of 90 mm, an outside diameter of 120 mm, and a height of 4 mm.

What types of loads can this bearing accommodate?

It is designed to accommodate heavy axial loads in a single direction and cannot support radial loads.

What material is the cage made from?

The cage of this needle thrust assembly is made of sheet steel.

Can this assembly run directly against machine components?

Yes, provided adjacent surfaces are hardened and ground, or paired with matching thrust washers such as AS 90120.

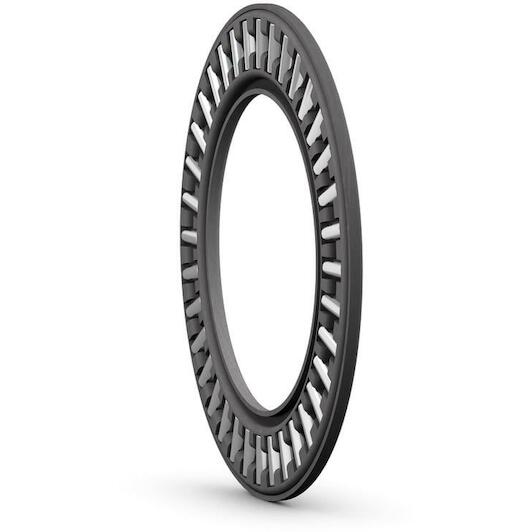

SKF AXK 90120 needle roller bearing 90 x 120 mm

Supplier number: SKF AXK 90120 | EAN 7316577713575

Recommended Retail Price €94.16

46.40 tax incl.

€38.35 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Heavy axial performance with Skf

Practical benefits

High axial load capacity: You handle heavy unidirectional axial loads and peak forces reliably with superior bearing stiffness.
Minimal space requirements: With a thickness of only 4 mm, you easily fit this assembly into tight, compact machine spaces.
Robust sheet steel cage: The durable steel cage ensures precise roller guidance so you achieve smooth running and long service life.

In a nutshell

The right choise for

With the Skf axk 90120 needle roller thrust bearing, you reliably handle heavy unidirectional axial loads in extremely tight installation spaces. Featuring a minimal thickness of just 4 mm, it allows you to create rigid and dependable bearing arrangements across drive technology, industrial gearboxes, and hydraulic pumps. The robust sheet steel cage guides the rollers with high precision, keeping friction and wear to a minimum. When adjacent machine surfaces are hardened and ground, the assembly runs directly against them or pairs seamlessly with as 90120 thrust washers for smooth machine building and overhaul projects.

Product information FAQ

€46.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 90 mm
Thickness: 4 mm
Material (cage): Sheet steel
Outer diameter: 120 mm

Product description

Needle roller and cage thrust assemblies are designed to accommodate heavy axial loads and peak loads in one direction. They provide a high degree of stiffness within a minimum axial space. In applications where the faces of adjacent machine components serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust washer. The bearings can also be combined with bearing washers to create complete bearings.

High axial load carrying capacity
High stiffness
Long service life
Require minimal axial space
Can be combined with bearing washers

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 90 mm
Thickness: 4 mm
Material (cage): Sheet steel
Outer diameter: 120 mm
Bore diameter: 90
Material, bearing: Bearing steel
Cage: Sheet steel
Reference speed: 1500
Basic static load rating: 405
Bearing part: Needle roller and cage assembly
Limiting speed: 3000
Height: 4
Basic dynamic load rating: 65.5
Coating: Without
Outer diameter: 120
Roller grade: G2

Brand SKF
01291059
EAN 7316577713575
Supplier number SKF AXK 90120

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller thrust bearing?: The SKF AXK 90120 has an inside diameter of 90 mm, an outside diameter of 120 mm, and a height of 4 mm.
What types of loads can this bearing accommodate?: It is designed to accommodate heavy axial loads in a single direction and cannot support radial loads.
What material is the cage made from?: The cage of this needle thrust assembly is made of sheet steel.
Can this assembly run directly against machine components?: Yes, provided adjacent surfaces are hardened and ground, or paired with matching thrust washers such as AS 90120.
