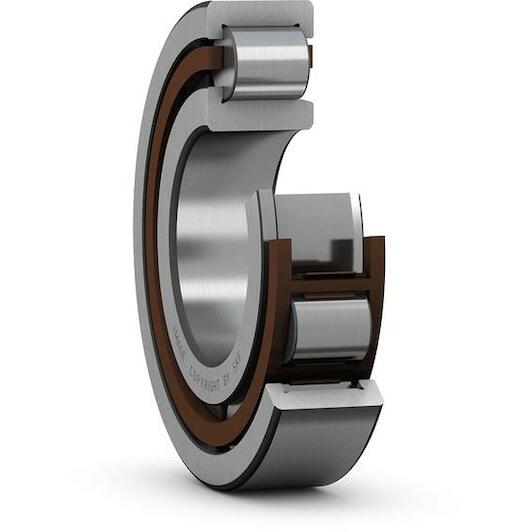

SKF BC1-0312 Single-row cylindrical roller bearing with NJF design 25 mm

Recommended Retail Price €125.43
61.95 tax incl.
€51.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and one on the inner ring, NJF design bearings can accommodate axial displacement in one direction. A retaining ring on the inner ring provides a shoulder to hold the bearing components in place. The retaining ring should not be loaded axially during operation.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Locate the shaft axially in one direction
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 15 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 52 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570448443
  • Supplier number: SKF BC1-0312
Inner diameter
25 mm
Width
15 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
52 mm
Loose flange
None
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
CN
Lubricant
None
Basic static load rating
27
Relubrication feature
Without
Reference speed
14000
Sealing
Without
Cage
Non-metallic
Number of flanges, inner ring
1
Locating feature, bearing outer ring
None
Number of flanges, outer ring
2
Limiting speed
16000
Bore diameter
25
Basic dynamic load rating
32.5
Coating
Without
Outside diameter
52
