skf_bc1_0547b
SKF

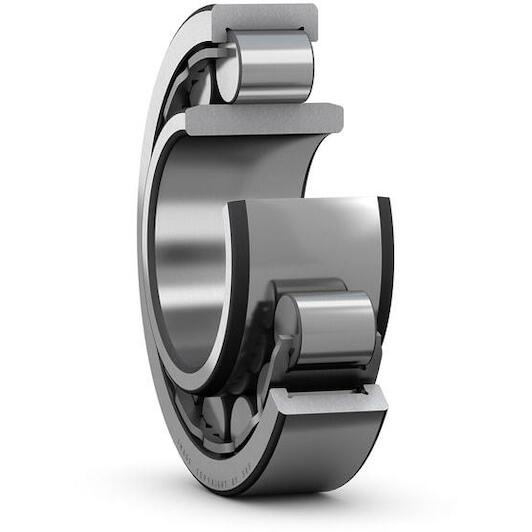

SKF BC1-0547 B single-row cylindrical roller bearing with extended inner ring, NUB design 50 mm

Recommended Retail Price €532.36
263.40 tax incl.
€217.69 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the outer ring and no flanges on the inner ring, NUB design bearings can accommodate axial displacement in both directions. The inner ring is extended on both sides, enabling larger axial displacements. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 50 mm
  • Width: 30 mm
  • Number of rows: 1
  • Radial clearance: C3
  • Seal (bearing): Without seal
  • Bore type: Cylindrical
  • Outer diameter: 90 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316573313540
  • Supplier number: SKF BC1-0547 B
Inner diameter
50 mm
Width
30 mm
Number of rows
1
Radial clearance
C3
Seal (bearing)
Without seal
Bore type
Cylindrical
Outer diameter
90 mm
Loose flange
None
Bearing part
Complete bearing
Tolerance class
Normal
Radial internal clearance
C3
Lubricant
None
Basic static load rating
69.5
Relubrication feature
Without
Reference speed
7500
Sealing
Without
Cage
Machined metal
Locating feature, bearing outer ring
None
Bore diameter
50
Number of flanges, outer ring
2
Inner ring extension
On both sides
Limiting speed
9000
Basic dynamic load rating
73.5
Coating
Without
Outside diameter
90
Axial displacement capability
In both directions
