SKF BEAS 015045 C-2RSH double direction angular contact ball bearing for spindle drives 15 mm

Recommended Retail Price €1,031.22

510.40 tax incl.

€421.82 excl. VAT (incl. all environmental contributions)

SKF BEAS 015045 C-2RSH double direction angular contact ball bearing for spindle drives 15 mm

€510.40 Recommended Retail Price €1,031.22

On order: delivered from 23/05/2026

each

Ordered before 20:00 - delivered as of 23/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

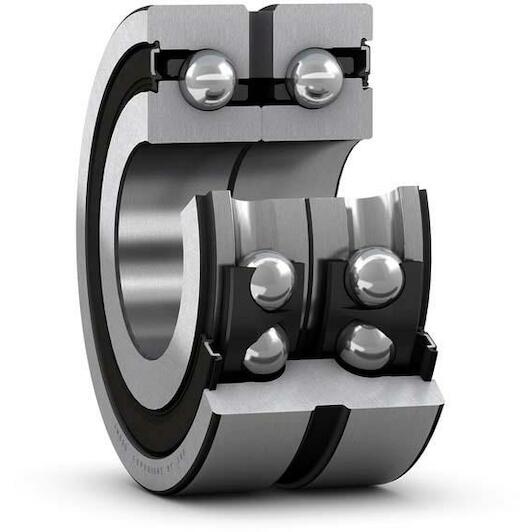

These double direction angular contact thrust ball bearings are well suited for screw drive applications, but are also beneficial in other applications, where reliable radial and axial support is required, together with extremely precise axial guidance of the shaft. The bearings provide a high degree of axial stiffness, high axial load carrying capacity, accommodate high speeds and rapid accelerations, and offer very high running accuracy.

Accommodate radial loads, and axial loads in both directions
Greased and sealed as standard
Ready and easy to mount
Easy to relubricate

Key features according to our expert

Inner diameter: 15 mm
Width: 25 mm
Number of rows: 2
Seal (bearing): Double-sided sealed
Outer diameter: 45 mm

Specifications / All features

Brand: SKF
08105595
EAN: 7316577861573
Supplier number: SKF BEAS 015045 C-2RSH

Inner diameter: 15 mm
Width: 25 mm
Number of rows: 2
Seal (bearing): Double-sided sealed
Outer diameter: 45 mm
Housing washer type (double-row angular contact thrust ball bearings): One-piece
Attainable speed for grease lubrication: 4600
Cage: Non-metallic
Sealing type: Contact
Lubricant: Grease
Relubrication feature: With
Basic static load rating: 33.5
Locating feature, bearing outer ring: None
Sealing: Seal on both sides
Contact angle: 60
Axial load capability: Double-direction
Bore diameter: 15
Basic dynamic load rating: 20.4
Height: 25
Outside diameter: 45
Single bearing, universally matchable, delivered individually: No
