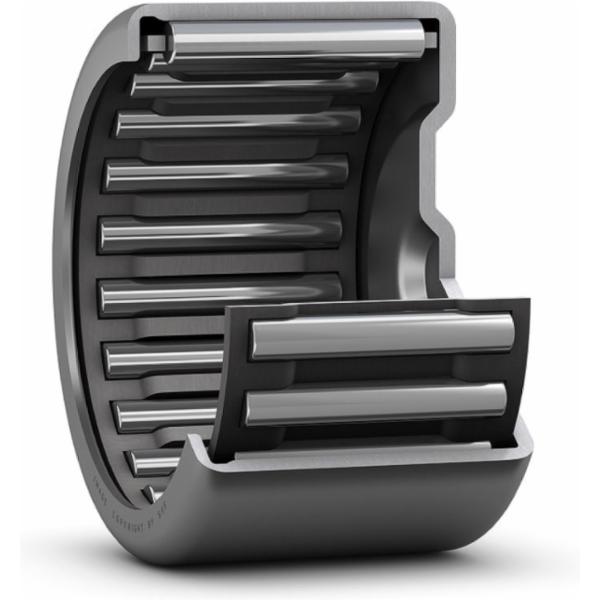

SKF BK 2016 Single-row needle roller bearing without inner ring 20 x 26 x 16 mm

Show more features

Inner diameter

20 mm

Width

16 mm

Number of rows

1

Version (needle cage)

Closed-end

Outer diameter

26 mm

Sealing

Without

Cage

Sheet steel

Seal type

Not applicable

Lubricant

None

Reference speed

12,000 r/min

Relubrication feature

Without

Bore diameter of needle roller complement

20 mm

Basic static load rating

20.4 kN

Aligning feature

Without

Tolerance class

Normal

Bearing part

Bearing without inner ring

Limiting speed

14,000 r/min

Number of flanges, outer ring

2

Outer ring type

Drawn cup with one closed end

Basic dynamic load rating

12.3 kN

Coating

Without

Outside diameter

26 mm

Material, bearing

Bearing steel
