What are the dimensions of this SKF spherical roller bearing?

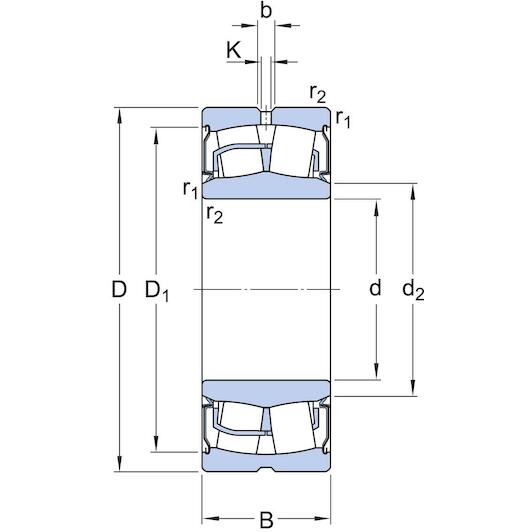

The bearing has a 60 mm bore diameter, a 110 mm outer diameter, and a width of 34 mm.

What type of sealing does this bearing have?

It features rubber contact seals on both sides (2RS) to protect against contamination.

Can this bearing be relubricated?

Yes, it includes relubrication features and is pre-filled with grease from the factory.

What type of bore does this bearing have?

This model features a cylindrical bore for direct mounting onto a straight shaft.

What radial internal clearance does this bearing have?

The bearing has standard radial internal clearance (CN clearance class).

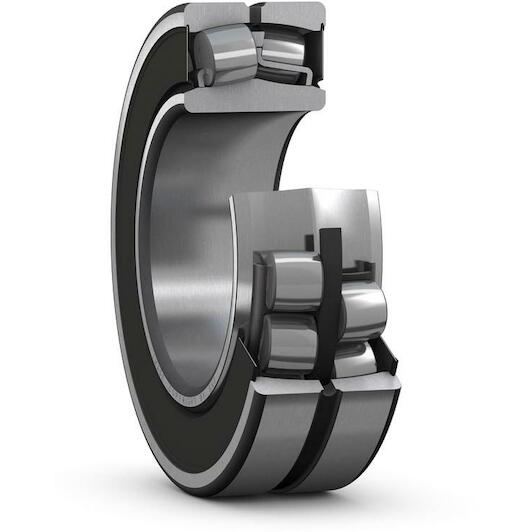

SKF BS2-2212-2RS/VT143 spherical roller bearing cylindrical 60 x 110 x 34 mm

Supplier number: SKF BS2-2212-2RS/VT143 | EAN 7316576193064

Recommended Retail Price €407.26

201.60 tax incl.

€166.61 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered tomorrow 16/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable performance under heavy loads

Practical benefits

Spherical roller bearing BS2-2212-2RS/VT143: Two rows of barrel rollers allow you to accommodate heavy radial loads and bidirectional axial forces with ease.
Integral dual rubber sealing: Contact rubber seals on both sides retain lubricant effectively while preventing external contaminants from causing premature wear.
Simplified maintenance through relubrication: Integrated relubrication features enable you to replenish grease quickly without undertaking complex disassemblies of your machinery.

In a nutshell

The right choise for

Keep your heavy machinery running smoothly under demanding conditions with the Skf BS2-2212-2RS/VT143 spherical roller bearing. Built with two rows of symmetrical rollers, it accommodates heavy radial loads and bidirectional axial forces while naturally compensating for shaft deflections and angular misalignment. Double contact rubber seals on both sides protect internal components from dust, dirt, and moisture, preventing premature wear. Factory pre-filled with grease and equipped with integrated relubrication features, it allows you to replenish lubricant easily without complex disassemblies. You achieve longer service intervals, reduced maintenance effort, and maximum uptime across your industrial installations.

Product information FAQ

€201.60

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 34 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 110 mm

Product description

Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication.

Accommodate misalignment
High load carrying capacity
Sealed for increased reliability, with relubrication features
Low friction and long service life
Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 34 mm
Number of rows: 2
Sealing (bearing): Sealed on both sides
Material (bearing seal): Rubber
Radial clearance: CN (Normal)
Material (cage): Brass (sheet)
Bore type: Cylindrical
Outer diameter: 110 mm
Skf performance class: SKF Explorer
Basic static load rating: 166
Relubrication feature: With
Tolerance class for run-out: P5
Lubricant: Grease
Sealing type: Contact
Cage: Sheet metal
Locating feature, bearing outer ring: Without
Radial internal clearance: CN
Basic dynamic load rating: 159
Sealing: Seal on both sides
Limiting speed: 2700
Bore diameter: 60
Outer diameter: 110
Tolerance class for dimensions: Normal

Brand SKF
02695560
EAN 7316576193064
Supplier number SKF BS2-2212-2RS/VT143

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF spherical roller bearing?: The bearing has a 60 mm bore diameter, a 110 mm outer diameter, and a width of 34 mm.
What type of sealing does this bearing have?: It features rubber contact seals on both sides (2RS) to protect against contamination.
Can this bearing be relubricated?: Yes, it includes relubrication features and is pre-filled with grease from the factory.
What type of bore does this bearing have?: This model features a cylindrical bore for direct mounting onto a straight shaft.
What radial internal clearance does this bearing have?: The bearing has standard radial internal clearance (CN clearance class).
