skf_bs2_2214_2rs5c4gem9

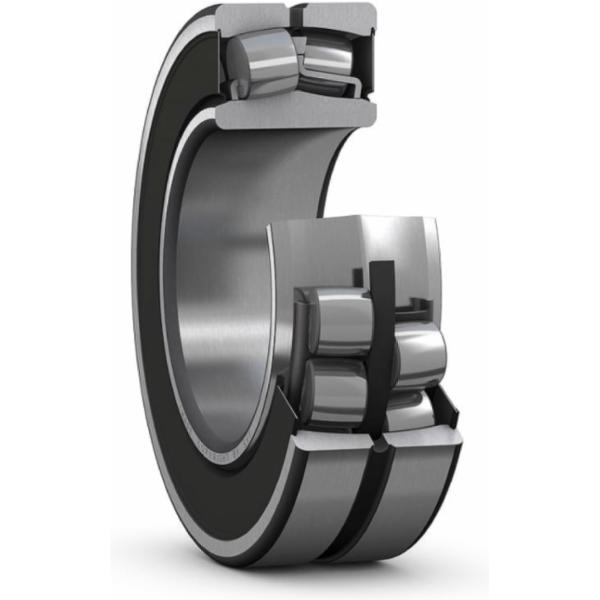

SKF BS2-2214-2RS5/C4GEM9 spherical roller bearing cylindrical 70 x 125 x 38 mm

SKF
Supplier number: SKF BS2-2214-2RS5/C4GEM9 | EAN 7316576832406
Recommended Retail Price €575.52
284.80 tax incl.
€235.37 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/11/2026

  • Ordered before 20:00 - delivered as of 26/11/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
↓ Documents (1) ✆ Talk to a specialist


Product information
€284.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 70 mm
  • Width: 38 mm
  • Number of rows: 2
  • Sealing (bearing): Sealed on both sides
  • Material (bearing seal): Rubber
  • Radial clearance: C4
  • Material (cage): Brass (sheet)
  • Bore type: Cylindrical
  • Outer diameter: 125 mm

Product description

  • Spherical roller bearings can accommodate heavy loads in both directions. They are self-aligning and accommodate misalignment and shaft deflections, with virtually no increase in friction or temperature. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low. The design includes features to facilitate relubrication. Also available on request with special sized bore and/or outside diameters, suitable for reworked shafts and housings.

Avantages

  • Accommodate misalignment up to 0.5 degree
  • High load carrying capacity
  • Sealed for increased reliability, with relubrication features
  • Low friction and long service life
  • Increased wear resistance

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter
70 mm
Width
38 mm
Number of rows
2
Sealing (bearing)
Sealed on both sides
Material (bearing seal)
Rubber
Radial clearance
C4
Material (cage)
Brass (sheet)
Bore type
Cylindrical
Outer diameter
125 mm
Skf performance class
SKF Explorer
Basic static load rating
228 kN
Relubrication feature
With
Tolerance class for run-out
P5
Lubricant
Grease
Sealing type
Contact
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Radial internal clearance
C4
Basic dynamic load rating
213 kN
Sealing
Seal on both sides
Limiting speed
310 r/min
Bore diameter
70 mm
Outside diameter
125 mm
Tolerance class for dimensions
Normal
  • Brand SKF
  • EAN 7316576832406
  • Supplier number SKF BS2-2214-2RS5/C4GEM9
