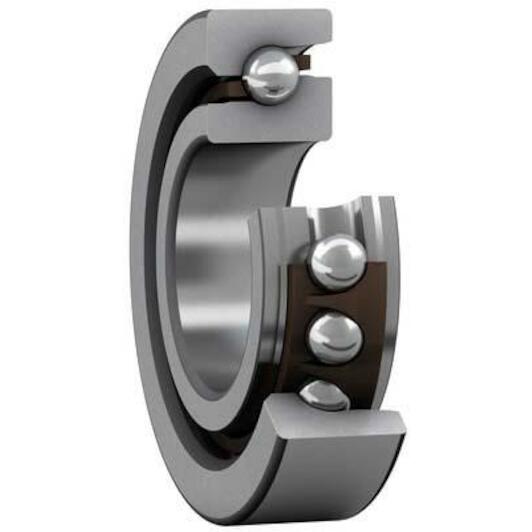

SKF BSA 209 CGB angular contact ball bearing single acting 45 mm

Supplier number: SKF BSA 209 CGB | EAN 7316575059040
Recommended Retail Price €919.64
455.20 tax incl.
€376.20 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/10/2026

  • Ordered before 20:00 - delivered as of 08/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium


€455.20
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 45 mm
  • Width: 19 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Outer diameter: 85 mm

Product description

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.

  • Very high running accuracy
  • High axial stiffness
  • High axial load carrying capacity in one direction
  • Universally matchable
  • Well suited for screw drive applications

All Features

Inner diameter
45 mm
Width
19 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Outer diameter
85 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Cage
Non-metallic
Relubrication feature
Without
Basic static load rating
134
Tolerance class
Special
Locating feature, bearing outer ring
None
Sealing
Without
Attainable speed for oil-air lubrication
7500
Contact angle
62
Basic dynamic load rating
45
Bore diameter
45
Coating
Without
Height
19
Outside diameter
85
Attainable speed for grease lubrication
6300
  • Brand SKF
  • EAN 7316575059040
  • Supplier number SKF BSA 209 CGB
