SKF

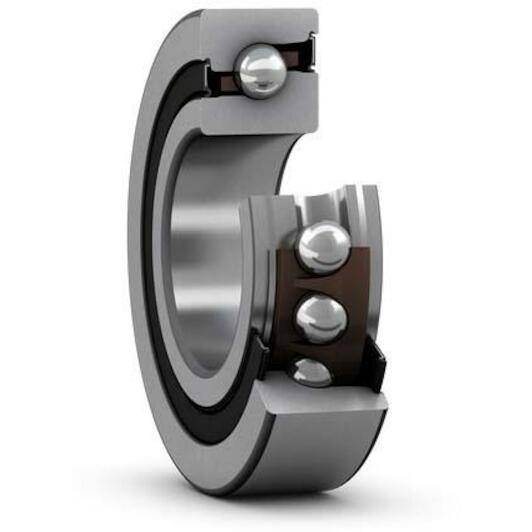

SKF BSD 2562 CGB-2RS1 angular contact ball bearing sealed single acting 25 mm

Recommended Retail Price €443.85
219.60 tax incl.
€181.49 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These sealed super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. Under normal operating conditions, sealed bearings are almost maintenance-free, keeping service costs and grease consumption low.

  • Very high running accuracy
  • High axial stiffness
  • High axial load carrying capacity in one direction
  • Universally matchable
  • Well suited for screw drive applications
Key features according to our expert
  • Inner diameter: 25 mm
  • Width: 15 mm
  • Number of rows: 1
  • Seal (bearing): Double-sided sealed
  • Outer diameter: 62 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576916809
  • Supplier number: SKF BSD 2562 CGB-2RS1
Inner diameter
25 mm
Width
15 mm
Number of rows
1
Seal (bearing)
Double-sided sealed
Outer diameter
62 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Cage
Non-metallic
Sealing type
Contact
Relubrication feature
Without
Basic static load rating
71
Locating feature, bearing outer ring
None
Sealing
Seal on both sides
Contact angle
62
Basic dynamic load rating
28.5
Bore diameter
25
Coating
Without
Height
15
Outside diameter
62
Attainable speed for grease lubrication
8000
