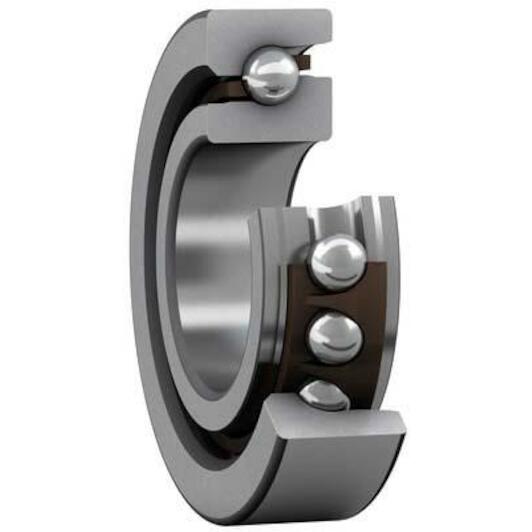

SKF BSD 55100 CGA angular contact ball bearing single acting 55 mm

SKF
Supplier number: SKF BSD 55100 CGA | EAN 7316575062866
Recommended Retail Price €1,940.73
960.80 tax incl.
€794.05 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026

  • Ordered before 20:00 - delivered as of 17/10/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium
✆ Talk to a specialist


Product information
€960.80
tax incl.

Product information

Key features according to our expert

  • Inner diameter: 55 mm
  • Width: 20 mm
  • Number of rows: 1
  • Sealing (bearing): Without seals
  • Material (bearing seal): Not applicable
  • Outer diameter: 100 mm

Product description

These super-precision ball bearings offer very high running accuracy and are well suited for screw drive applications. They are also beneficial in other applications, where safe radial and axial support is required, together with extremely precise axial guidance of the shaft. They provide a high degree of axial stiffness and can accommodate heavy axial loads in one direction, high speeds and rapid accelerations.

  • Very high running accuracy
  • High axial stiffness
  • High axial load carrying capacity in one direction
  • Universally matchable
  • Well suited for screw drive applications

All Features

Inner diameter
55 mm
Width
20 mm
Number of rows
1
Sealing (bearing)
Without seals
Material (bearing seal)
Not applicable
Outer diameter
100 mm
Axial load capability
Single-direction
Material, bearing
Bearing steel
Cage
Non-metallic
Relubrication feature
Without
Basic static load rating
193
Tolerance class
Special
Locating feature, bearing outer ring
None
Sealing
Without
Attainable speed for oil-air lubrication
6700
Contact angle
62
Basic dynamic load rating
67
Bore diameter
55
Coating
Without
Height
20
Outer diameter
100
Attainable speed for grease lubrication
5600
  • Brand SKF
  • EAN 7316575062866
  • Supplier number SKF BSD 55100 CGA
