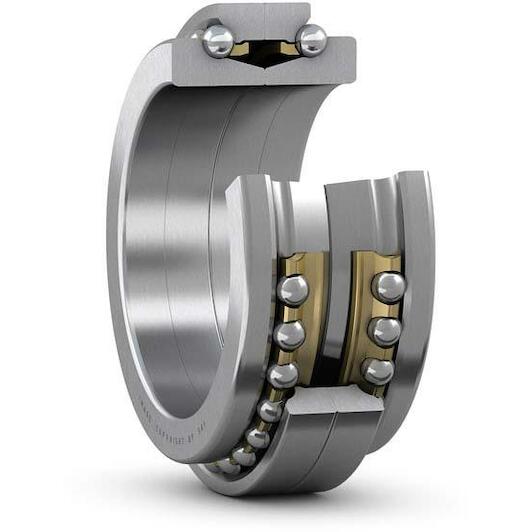

SKF BTW 140 CM/SP angular contact ball bearing basic double direction 140 mm

Recommended Retail Price €7,288.69

3,608.60 tax incl.

€2,982.31 excl. VAT (incl. all environmental contributions)

SKF BTW 140 CM/SP angular contact ball bearing basic double direction 140 mm

€3,608.60 Recommended Retail Price €7,288.69

On order: delivered from 26/05/2026

each

Ordered before 20:00 - delivered as of 26/05/2026
Free shipping
Delivery by DHL
Delivered from Belgium

Product information

Product description

These double direction angular contact thrust ball bearings consist of two single row angular contact thrust ball bearings, arranged back-to-back. They accommodate high axial loads in both directions and provide a high degree of system rigidity.

Accommodate axial loads in both directions
Maximum system rigidity
Separable

Key features according to our expert

Inner diameter: 140 mm
Width: 84 mm
Number of rows: 2
Seal (bearing): Without seal
Outer diameter: 210 mm

Specifications / All features

Brand: SKF
08106100
EAN: 7316574650200
Supplier number: SKF BTW 140 CM/SP

Inner diameter: 140 mm
Width: 84 mm
Number of rows: 2
Seal (bearing): Without seal
Outer diameter: 210 mm
Contact angle: 60
Material, bearing: Bearing steel
Cage: Machined metal
Design: Basic (BTW series)
Lubricant: None
Relubrication feature: Without
Basic static load rating: 375
Tolerance class: SP
Locating feature, bearing outer ring: None
Sealing: Without
Attainable speed for oil-air lubrication: 3800
Bore diameter: 140
Housing washer type (double-row angular contact thrust ball bearings): Two-piece
Axial load capability: Double-direction
Basic dynamic load rating: 106
Coating: Without
Height: 84
Outside diameter: 210
Attainable speed for grease lubrication: 3200
