SKF

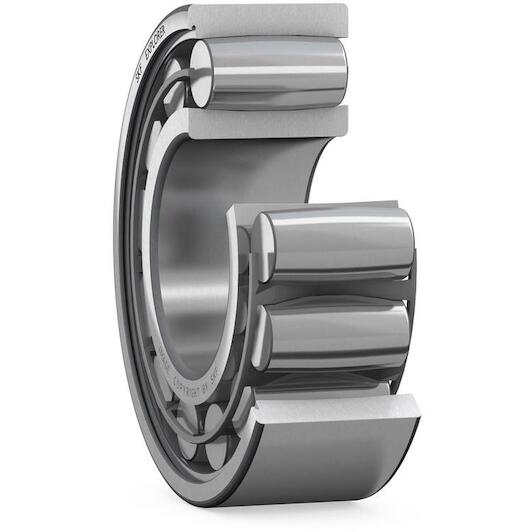

SKF C 2320 K CARB single-row toroidal roller bearing tapered 1:12 - 100 x 215 x 73 mm

Recommended Retail Price €3,106.18
1,537.80 tax incl.
€1,270.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.

  • Accommodate misalignment and axial displacement within the bearing
  • High radial load carrying capacity
  • Provide frictionless axial movement
  • Long bearing system life
  • Reduce noise and vibration levels
Key features according to our expert
  • Inner diameter: 100 mm
  • Width: 73 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Brass (sheet)
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Tapered
  • Outer diameter: 215 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570533897
  • Supplier number: SKF C 2320 K
Inner diameter
100 mm
Width
73 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Brass (sheet)
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Tapered
Outer diameter
215 mm
Relubrication feature
Without
Radial internal clearance
CN
Basic static load rating
880
Reference speed
2600
Skf performance class
SKF Explorer
Lubricant
None
Cage
Sheet metal
Locating feature, bearing outer ring
Without
Tolerance class
Normal
Basic dynamic load rating
800
Sealing
Without
Limiting speed
3600
Bore diameter
100
Outside diameter
215
Candidate for remanufacturing
Yes
