SKF FRB 5/140 circlip 129 x 140 x 5 mm

Supplier number: SKF FRB 5/140 | EAN 7316577299680

Recommended Retail Price €21.62

10.60 tax incl.

€8.76 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 29/09/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable axial bearing locating with Skf

Practical benefits

Precise axial bearing locating: You securely lock the bearing in place inside the housing, preventing unwanted axial movement during intensive operation.
Perfect housing seat fit: With exact dimensions of 129 x 140 x 5 mm, this locating ring integrates smoothly into compatible bearing housings.
Smooth and stable operation: You ensure consistent mechanical alignment under heavy loads, minimizing vibrations and extending the overall service life of equipment.

In a nutshell

The right choise for

With the Skf frb 5/140 locating ring, you securely lock bearings into their housing seat and eliminate unwanted axial displacement during intensive operation. Measuring 129 x 140 x 5 mm, this ring enables maintenance technicians and machine builders to establish stable locating bearing arrangements without modifying the housing bore. Designed to fit smoothly into compatible split pillow block housings such as the snl and snh series, it ensures precise mechanical alignment under continuous loads, reduces vibration and wear, and maintains smooth performance across rotating industrial equipment.

Product information FAQ

€10.60

In stock - tax incl.

Key features according to our expert

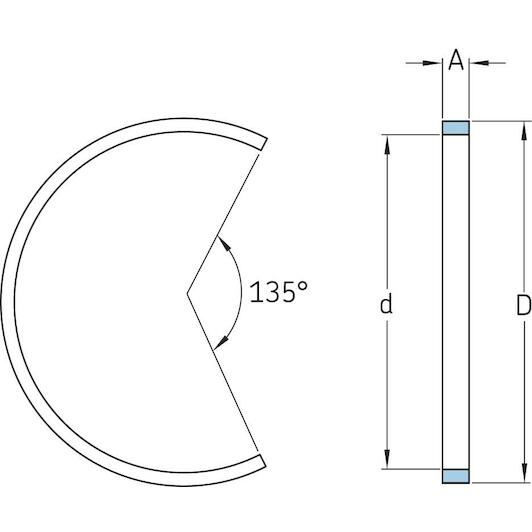

Inner diameter: 129 mm
Outer diameter: 140 mm
Width: 5 mm

Product description

A bearing in the locating position must be secured axially in the housing. If the bearing seat in the housing and the bearing width do not match, locating (stabilizing) rings are required. Typically, two locating rings are required per housing. One ring should be placed on each side of the bearing. If only one locating ring is required, it should be installed on the same side as the lock nut.

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 129 mm
Outer diameter: 140 mm
Width: 5 mm
Outside diameter: 140
Inside diameter: 129
Accessory type: Locating ring

Brand SKF
01230204
EAN 7316577299680
Supplier number SKF FRB 5/140

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF FRB 5/140 locating ring?: It secures a bearing axially in its housing when the housing seat is wider than the bearing.
What are the exact dimensions of this ring?: The ring has an outside diameter of 140 mm, an inside diameter of 129 mm, and a width of 5 mm.
How many locating rings are required per housing?: Typically, two rings are used per housing, placed on each side of the bearing. If only one is needed, install it on the lock nut side.
What does the designation FRB 5/140 stand for?: FRB is the SKF locating ring series, 5 represents the width in millimetres, and 140 is the outer diameter in millimetres.
Which bearing housings is this ring compatible with?: It is designed for SKF split pillow block housings (such as SNL and SNH) with a 140 mm bearing seat.
