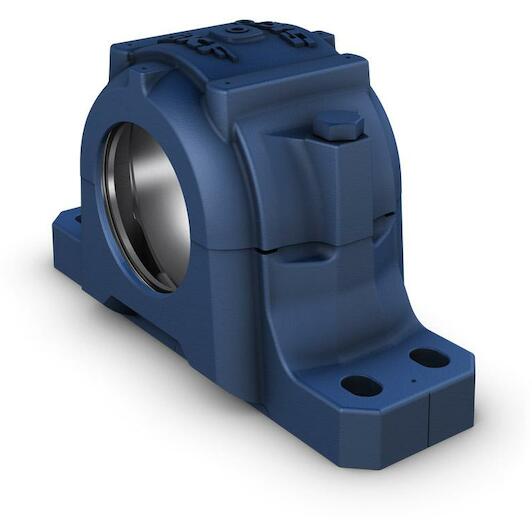

SKF FSNL 517 standing bearing housing cast iron two-piece 150 mm

Show more features

Seat diameter

150 mm

Material (bearing housing)

Cast iron

Housing type

Plummer/pillow block

Centre height (pillow block)

95 mm

Housing configuration

Two-piece

Number of bolt holes for fasteners

4

Material, housing

Cast iron

Centre distance between bolt holes

260 mm

Centre distance between bolt holes (axial direction)

50 mm

Diameter of bearing seat

150 mm

Attachment bolt diameter

16 mm

Bearing housing seal type

Without

Mounting arrangement

Through shaft/Shaft end

Housing lubrication feature/possibility

Grease

Width of bearing seat

61 mm
