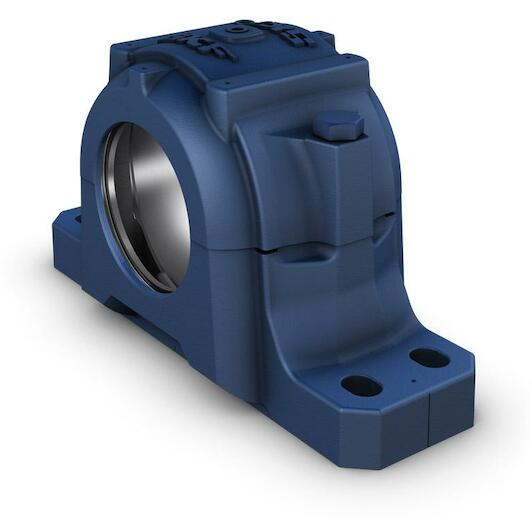

SKF FSNLD 520-617 standing bearing housing spherical graphite cast iron two-piece 180 mm

Show more features

Seat diameter

180 mm

Material (bearing housing)

Cast iron

Housing type

Plummer/pillow block

Centre height (pillow block)

112 mm

Housing configuration

Two-piece

Number of bolt holes for fasteners

4

Material, housing

Spheroidal graphite cast iron

Centre distance between bolt holes

320 mm

Centre distance between bolt holes (axial direction)

60 mm

Diameter of bearing seat

180 mm

Attachment bolt diameter

16 mm

Bearing housing seal type

Without

Mounting arrangement

Through shaft/Shaft end

Housing lubrication feature/possibility

Grease

Width of bearing seat

70 mm
