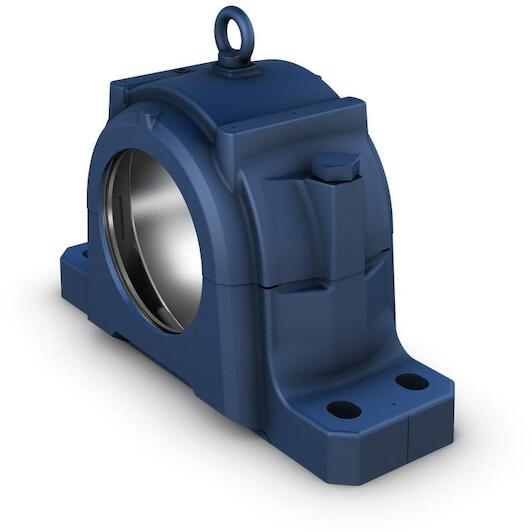

SKF FSNLD 526 standing bearing housing spherical graphite cast iron two-piece 230 mm

Show more features

Seat diameter

230 mm

Material (bearing housing)

Cast iron

Housing type

Plummer/pillow block

Centre height (pillow block)

150 mm

Housing configuration

Two-piece

Number of bolt holes for fasteners

4

Material, housing

Spheroidal graphite cast iron

Centre distance between bolt holes

380 mm

Centre distance between bolt holes (axial direction)

70 mm

Diameter of bearing seat

230 mm

Attachment bolt diameter

20 mm

Bearing housing seal type

Without

Mounting arrangement

Through shaft/Shaft end

Housing lubrication feature/possibility

Grease

Width of bearing seat

90 mm
