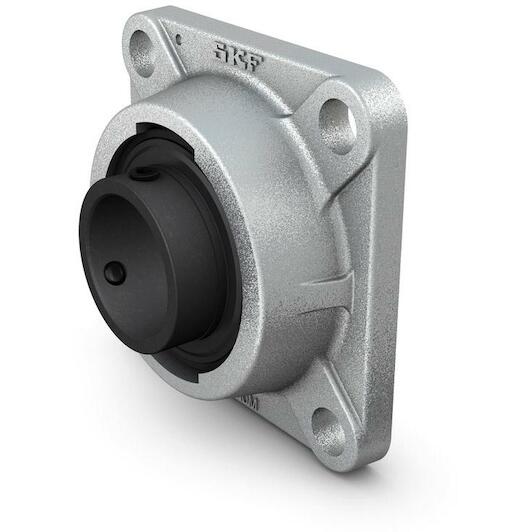

SKF FY 1.1/2 TF/VA201 Y ball bearing unit with flange square, d 38.1 mm, A 38.5 mm, J 101.5 mm
Key features according to our expert
- Shaft diameter: 38,1 mm
- Split: No
- Material (bearing housing): Stainless steel
- Material (bearing): Steel
- High temperature: Yes
- Bore type: Cylindrical
- Shape (bearing housing): Square
Specifications / All features
- Brand: SKF
- EAN: 7316571381473
- Supplier number: SKF FY 1.1/2 TF/VA201
- Shaft diameter
- 38,1 mm
- Split
- No
- Material (bearing housing)
- Stainless steel
- Material (bearing)
- Steel
- High temperature
- Yes
- Bore type
- Cylindrical
- Shape (bearing housing)
- Square
- Number of bolt holes for fasteners
- 4
- Maximum operating temperature
- 250 °C
- Bearing width, total
- 49.2 mm
- Material, housing
- Cast iron
- Basic static load rating
- 19 kN
- Sealing, bearing
- Shield and flinger on both sides
- Lubricant
- Solid lubricant
- Rubber seating ring
- Without
- Sealing type
- Non-contact

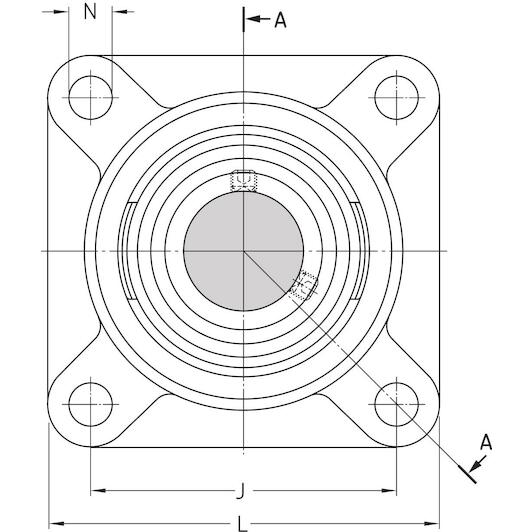

- Centre distance between bolt holes
- 101.5 mm
- Material, bearing
- High temperature steel
- Flanged housing type
- Square
- Retaining feature, inner ring
- Set screws
- Limiting speed
- 70 r/min
- Grease fitting
- Without
- Sealing, unit
- Without
- Width, total
- 54.2 mm
- Fastening bolt hole type
- Plain
- Relubrication hole
- Without
- Housing overall width
- 38.5 mm
- Basic dynamic load rating
- 30.7 kN
- Coating
- Zinc-coated housing and manganese phosphate coated bearing
- Housing type
- Flanged
