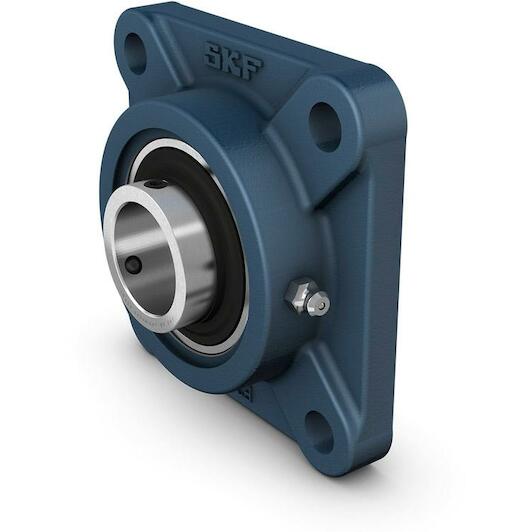

SKF FY 2.15/16 MTF Y ball bearing unit with flange square, d 74.6 mm, A 65.1 mm, J 196.9 mm - FY 2.15/16 UTF

Show more features

Shaft diameter

74,612 mm

Split

No

Material (bearing housing)

Stainless steel

Material (bearing)

Steel

High temperature

No

Bore type

Cylindrical

Shape (bearing housing)

Square

Number of bolt holes for fasteners

4

Retaining feature, inner ring

Set screws

Bearing width, total

73.3 mm

Material, housing

Cast iron

Basic static load rating

49 kN

Sealing, bearing

Seal and flinger on both sides

Lubricant

Grease

Rubber seating ring

Without

Sealing type

Contact, standard

Grease fitting

With

Material, bearing

Bearing steel

Flanged housing type

Square

Centre distance between bolt holes

152.5 mm

Limiting speed

2,600 r/min

Note

Limiting speed with shaft tolerance h6

Sealing, unit

Without

Width, total

87.3 mm

Fastening bolt hole type

Plain

Relubrication hole

With

Housing overall width

65 mm

Basic dynamic load rating

66.3 kN

Coating

Without

Housing type

Flanged
