What shaft diameter is this bearing unit suitable for?

This SKF flanged ball bearing unit is designed for a 60 mm shaft diameter.

How is the bearing secured to the shaft?

It locks onto the shaft using an eccentric locking collar, ideal for a constant direction of rotation.

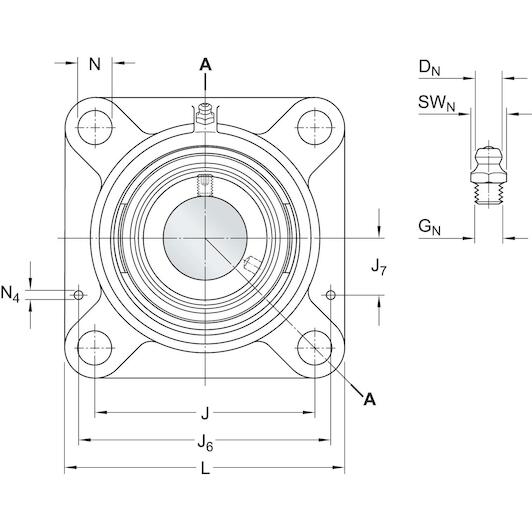

What is the centre distance between the bolt holes?

The centre distance (J) between the 4 mounting holes is 143 mm.

Which attachment bolts should be used?

The cast iron housing is mounted using attachment bolts with a diameter of 16 mm (M16).

Can this bearing unit accommodate misalignment?

It can accommodate moderate initial misalignment, but does not permit axial displacement.

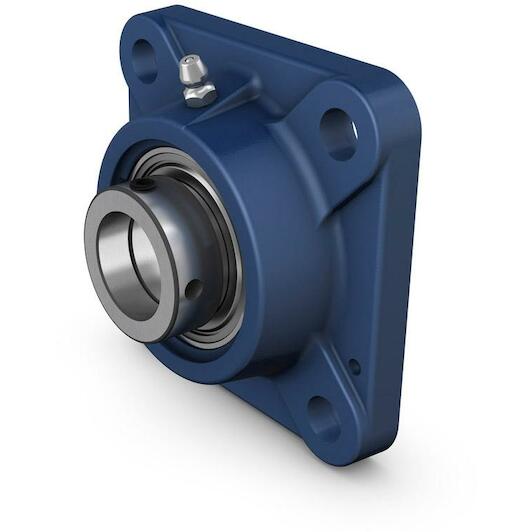

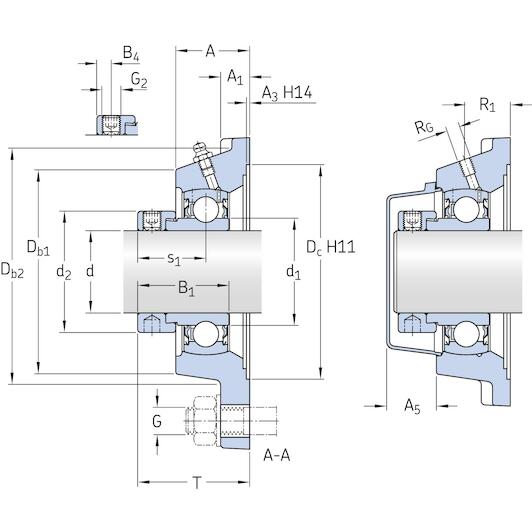

SKF FY 60 WF Y ball bearing unit with flange square, d 60 mm, A 52 mm, J 143 mm

Supplier number: SKF FY 60 WF | EAN 7316570339383

Recommended Retail Price €423.38

209.60 tax incl.

€173.22 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 8 products in stock.

Ordered before 20:00 - delivered as of 12/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable mounting with Skf unit

Practical benefits

Secure shaft locking mechanism: The eccentric locking collar lets you clamp your 60 mm shaft quickly and firmly for constant rotation directions.
Solid cast iron housing: The square 4-bolt flange supports heavy radial loads and attaches securely to your machine frame or mounting wall.
Effective sealing against contamination: Integrated seals keep dirt and dust out of the bearing, ensuring you get smooth running and extended service life.

In a nutshell

The right choise for

With the Skf fy 60 WF, you can mount a 60 mm rotating shaft securely and directly against a machine wall or frame. This square flanged Y-bearing unit features a solid cast iron housing designed to withstand heavy radial loads with ease. Thanks to the eccentric locking collar, you clamp the shaft quickly and reliably without press-fitting, making it ideal for machinery with a constant direction of rotation. The spherical outer ring compensates for moderate initial misalignments, while integrated seals keep out dirt and dust to ensure extended service life. With four mounting holes spaced at a 143 mm centre distance, it installs solidly using M16 bolts for dependable continuous operation.

Product information FAQ

€209.60

In stock - tax incl.

Key features according to our expert

Shaft diameter: 60 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Square

Product description

These square flanged ball bearing units are compliant with ISO standards. They consist of an insert bearing, with an extended inner ring and eccentric locking, and are intended primarily for use in applications where the direction of rotation is constant. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Resist high levels of contamination
Designed for high temperatures and speeds
Accommodate relatively heavy loads
Cost-effective

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter: 60 mm
Split: No
Material (bearing housing): Stainless steel
Material (bearing): Steel
High temperature: No
Bore type: Cylindrical
Shape (bearing housing): Square
Lubricant: Grease
Rubber seating ring: Without
Sealing type: Contact, standard
Sealing, bearing: Seal and flinger on both sides
Material, bearing: Bearing steel
Note: Limiting speed with shaft tolerance h6
Flanged housing type: Square
Housing type: Flanged
Application: For material handling applications; For air handling applications
Basic static load rating: 36
Hexagonal key size for set screw: 5
Tightening torque, set screw: 16.5
Grease fitting: With
Material, housing: Cast iron
Number of bolt holes for fasteners: 4
Attachment bolt diameter: 16
Bearing width, total: 77.8
Basic dynamic load rating: 52.7
Coating: Without
Housing overall width: 52
Retaining feature, inner ring: Eccentric collar
Relubrication hole: With
Fastening bolt hole type: Plain
Limiting speed: 3400
Width, total: 80.8
Sealing, unit: Optional end cover
Centre distance between bolt holes: 143
Set screw: M10x1

Brand SKF
01190837
EAN 7316570339383
Supplier number SKF FY 60 WF

Frequently asked questions about this product

Answered by specialists

What shaft diameter is this bearing unit suitable for?: This SKF flanged ball bearing unit is designed for a 60 mm shaft diameter.
How is the bearing secured to the shaft?: It locks onto the shaft using an eccentric locking collar, ideal for a constant direction of rotation.
What is the centre distance between the bolt holes?: The centre distance (J) between the 4 mounting holes is 143 mm.
Which attachment bolts should be used?: The cast iron housing is mounted using attachment bolts with a diameter of 16 mm (M16).
Can this bearing unit accommodate misalignment?: It can accommodate moderate initial misalignment, but does not permit axial displacement.
