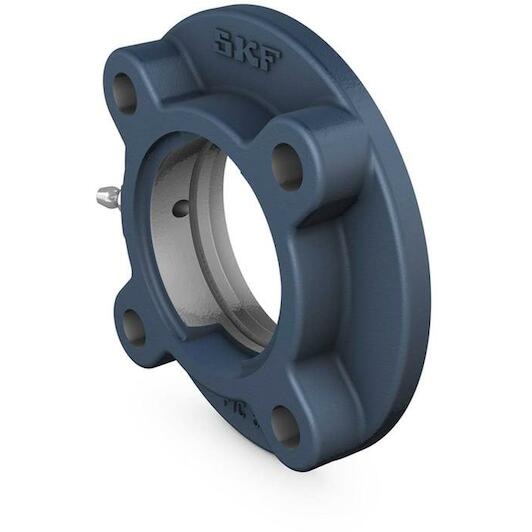

SKF FYC 513 bearing housing with round flange for insert bearing, cast iron

Supplier number: SKF FYC 513 | EAN 7316570293043
Recommended Retail Price €210.79
104.20 tax incl.
€86.12 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/04/2027

  • Ordered before 20:00 - delivered as of 27/04/2027
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium


€104.20
tax incl.

Product information

Key features according to our expert

  • Seat diameter: 120 mm
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Round

Product description

These round flanged housings for insert bearings are made of grey cast iron and can be bolted with four bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

  • Resist high levels of contamination
  • Accommodate relatively heavy loads

Documents

All Features

Seat diameter
120 mm
Material (bearing housing)
Cast iron
Shape (bearing housing)
Round
Fastening bolt hole type
Plain
Grease fitting
With
Spherical seating diameter
120
Housing type
Flanged
Flanged housing type
Round
Number of bolt holes for fasteners
4
Pitch diameter of bolt holes of round and triangle flange type housing
170
Housing overall width
50
Relubrication hole
With
Coating
Without
Material, housing
Cast iron
  • Brand SKF
  • EAN 7316570293043
  • Supplier number SKF FYC 513
