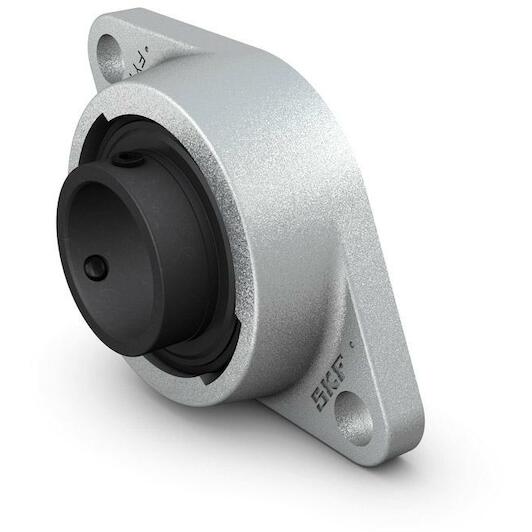

SKF FYTB 35 TF/VA201 Y ball bearing unit with flange oval, d 35 mm, A 34.5 mm, J 130 mm

SKF
Supplier number: SKF FYTB 35 TF/VA201 | EAN 7316579223119
This product has been discontinued.

↓ Documents (1) ✆ Talk to a specialist


Product information

Product information

Key features according to our expert

  • Shaft diameter: 35 mm
  • Split: No
  • Material (bearing housing): Stainless steel
  • Material (bearing): Steel
  • High temperature: Yes
  • Bore type: Cylindrical
  • Shape (bearing housing): Oval

Documents

⤓ Technical data sheet PDF

All Features

Shaft diameter
35 mm
Split
No
Material (bearing housing)
Stainless steel
Material (bearing)
Steel
High temperature
Yes
Bore type
Cylindrical
Shape (bearing housing)
Oval
Number of bolt holes for fasteners
2
Maximum operating temperature
250 °C
Bearing width, total
42.9 mm
Material, housing
Cast iron
Basic static load rating
15.3 kN
Sealing, bearing
Shield and flinger on both sides
Lubricant
Solid lubricant
Rubber seating ring
Without
Sealing type
Non-contact
Centre distance between bolt holes
130 mm
Material, bearing
High temperature steel
Flanged housing type
Oval
Retaining feature, inner ring
Set screws
Limiting speed
80 r/min
Grease fitting
Without
Sealing, unit
Without
Width, total
46.4 mm
Fastening bolt hole type
Plain
Relubrication hole
Without
Housing overall width
34.5 mm
Basic dynamic load rating
25.5 kN
Coating
Zinc-coated housing and manganese phosphate coated bearing
Housing type
Flanged
  • Brand SKF
  • EAN 7316579223119
  • Supplier number SKF FYTB 35 TF/VA201
