What is the housing bore diameter of this unit?

The SKF FYTB 506 M housing features a 62 mm seating diameter for compatible insert bearings.

What material is this bearing housing made of?

This flanged housing is made from durable cast iron, engineered to handle heavy loads and vibration.

How is this flanged housing mounted?

You mount this oval 2-bolt flanged unit directly onto a machine frame or wall using two bolts.

Is the insert bearing included with this product?

No, this item includes only the cast-iron flanged housing without the insert bearing.

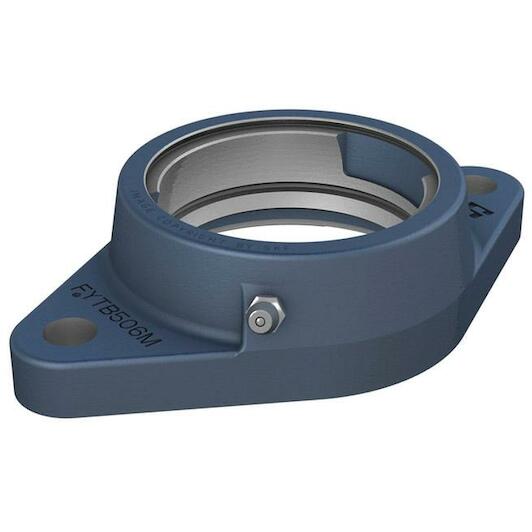

SKF FYTB 506 M bearing housing with oval flanges for insert bearing, cast iron

Supplier number: SKF FYTB 506 M | EAN 7316570625127

Recommended Retail Price €48.82

23.95 tax incl.

€19.79 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 12/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable mounting for rotating shafts

Practical benefits

Solid cast iron housing: The sturdy cast iron construction dampens mechanical vibrations so you achieve smooth running and long-lasting operational reliability.
Compact oval two-bolt flange: You easily secure the unit onto flat machine frames and walls using the two pre-drilled mounting holes.
Exact 62 mm seating: With the Skf FYTB 506 M, you fit compatible insert bearings precisely to support demanding industrial bearing arrangements.

In a nutshell

The right choise for

With the Skf fytb 506 M flanged housing, you secure rotating shafts quickly and reliably onto flat machine walls and frames. Its compact oval two-bolt design saves valuable mounting space compared to larger square housings. Built from solid cast iron, this housing effectively dampens vibrations and withstands heavy mechanical loads in demanding environments. The precise 62 mm bearing seat provides a stable, accurate fit for compatible insert bearings, keeping your machinery running smoothly and dependably.

Product information FAQ

€23.95

In stock - tax incl.

Key features according to our expert

Seat diameter: 62 mm
Material (bearing housing): Cast iron
Shape (bearing housing): Oval

Product description

These oval flanged housings for insert bearings are made of grey cast iron and can be bolted with two bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

Resist high levels of contamination
Accommodate relatively heavy loads

Documents

⤓ Technical data sheet PDF

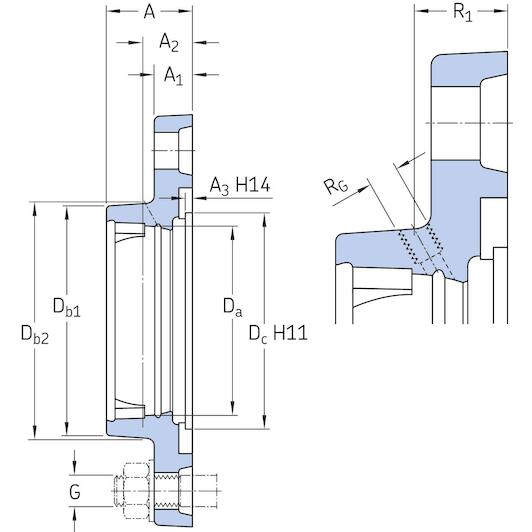

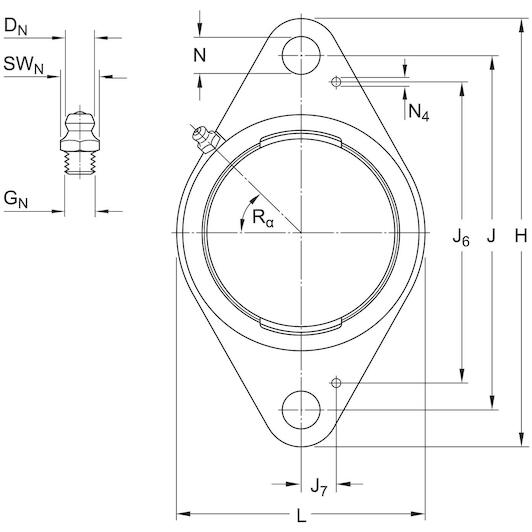

All Features

Seat diameter: 62 mm
Material (bearing housing): Cast iron
Shape (bearing housing): Oval
Fastening bolt hole type: Plain
Grease fitting: With
Spherical seating diameter: 62
Housing type: Flanged
Flanged housing type: Oval
Number of bolt holes for fasteners: 2
Centre distance between bolt holes: 116.5
Housing overall width: 32.5
Relubrication hole: With
Coating: Without
Material, housing: Cast iron

Brand SKF
01190847
EAN 7316570625127
Supplier number SKF FYTB 506 M

Frequently asked questions about this product

Answered by specialists

What is the housing bore diameter of this unit?: The SKF FYTB 506 M housing features a 62 mm seating diameter for compatible insert bearings.
What material is this bearing housing made of?: This flanged housing is made from durable cast iron, engineered to handle heavy loads and vibration.
How is this flanged housing mounted?: You mount this oval 2-bolt flanged unit directly onto a machine frame or wall using two bolts.
Is the insert bearing included with this product?: No, this item includes only the cast-iron flanged housing without the insert bearing.
