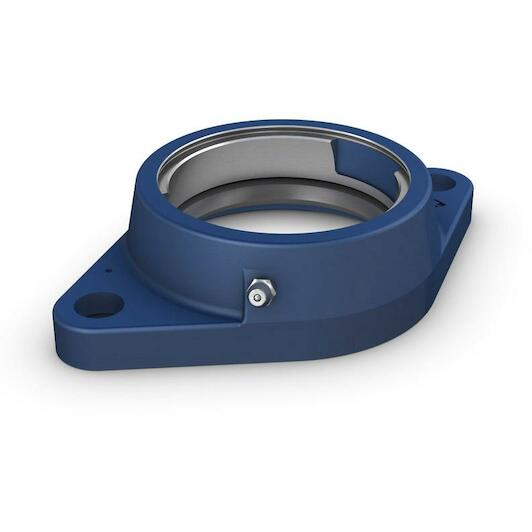

SKF FYTJ 504 bearing housing with oval flange for insert bearings, cast iron, JIS

Supplier number: SKF FYTJ 504 | EAN 7316570450569
Recommended Retail Price €38.43
18.95 tax incl.
€15.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Ordered before 20:00 - delivered as of 21/10/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium


€18.95
tax incl.

Product information

Key features according to our expert

  • Seat diameter: 47 mm
  • Split: No
  • Material (bearing housing): Cast iron
  • Shape (bearing housing): Oval

Product description

  • These oval flanged housings for insert bearings are compliant with Japanese Industrial Standards (JIS). They are made of grey cast iron and can be bolted with two bolts to a machine wall or frame. They have been developed for bearing arrangements that must operate reliably in difficult environments.

Avantages

  • Accommodate relatively heavy loads

Documents

All Features

Seat diameter
47 mm
Split
No
Material (bearing housing)
Cast iron
Shape (bearing housing)
Oval
Fastening bolt hole type
Plain
Housing type
Flanged
Flanged housing type
Oval
Number of bolt holes for fasteners
2
Material, housing
Cast iron
Centre distance between bolt holes
90 mm
Grease fitting
With
Housing overall width
25.5 mm
Relubrication hole
With
Coating
Without
Spherical seating diameter
47 mm
  • Brand SKF
  • EAN 7316570450569
  • Supplier number SKF FYTJ 504
