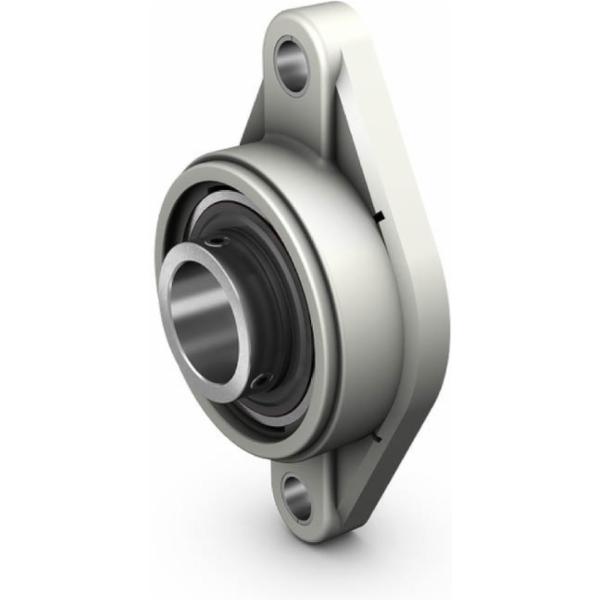

SKF FYTWK 35 YTH Y ball bearing unit with flange oval, d 35 mm, A 35 mm, J 130 mm
Key features according to our expert
- Shaft diameter: 35 mm
- Split: No
- Material (bearing housing): Composite
- Material (bearing): Stainless steel
- High temperature: No
- Bore type: Cylindrical
- Shape (bearing housing): Oval
Specifications / All features
- Brand: SKF
- EAN: 7316574916818
- Supplier number: SKF FYTWK 35 YTH
- Shaft diameter
- 35 mm
- Split
- No
- Material (bearing housing)
- Composite
- Material (bearing)
- Stainless steel
- High temperature
- No
- Bore type
- Cylindrical
- Shape (bearing housing)
- Oval
- Lubricant
- Grease
- Bearing width, total
- 42.9 mm
- Material, housing
- Composite for the SKF Food Line
- Basic static load rating
- 15.3 kN
- Number of bolt holes for fasteners
- 2
- Sealing, bearing
- Seal and flinger on both sides
- Rubber seating ring
- Without
- Sealing type
- Contact, multiple
- Centre distance between bolt holes
- 130 mm
- Material, bearing
- Stainless steel
- Flanged housing type
- Oval
- Retaining feature, inner ring
- Set screws
- Limiting speed
- 3,200 r/min
- Grease fitting
- Without
- Note
- Limiting speed with shaft tolerance h6
- Sealing, unit
- Optional end cover
- Fastening bolt hole type
- Plain
- Relubrication hole
- Without
- Housing overall width
- 35 mm
- Basic dynamic load rating
- 21.6 kN
- Coating
- Without
- Housing type
- Flanged
