SKF GE 60 ES-2RS spherical plain bearing 60 x 90 x 44 mm

Supplier number: SKF GE 60 ES-2RS | EAN 7316576609435

Recommended Retail Price €270.45

133.80 tax incl.

€110.58 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 28/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Dependable performance under heavy loads

Practical benefits

Double lip seal protection: Heavy-duty contact seals on both sides keep out contaminants so you maintain smooth operation in harsh environments.
High radial load capacity: The steel-on-steel sliding contact accommodates heavy radial and combined loads while easily handling misalignment.
Simple relubrication design: Integrated lubrication holes and an annular groove allow you to service the spherical plain bearing quickly.

In a nutshell

The right choise for

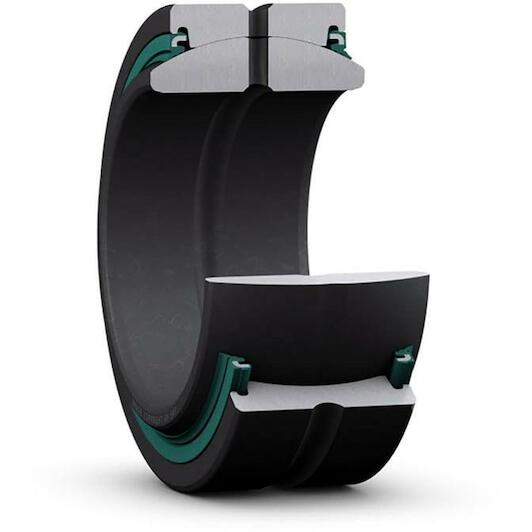

With the Skf ge 60 ES-2RS radial spherical plain bearing, you smoothly handle heavy radial loads and combined forces. Featuring dimensions of 60 x 90 x 44 mm and normal radial internal clearance (CN), this steel-on-steel bearing effortlessly accommodates misalignment and tilting during oscillating movements. The double-lip 2RS contact seals on both sides keep out dirt and moisture, ensuring reliable protection in challenging operating environments. Thanks to the integrated lubrication holes and annular groove, you can easily relubricate this bearing to maintain optimal performance and extend the service life of your machinery and hydraulic equipment.

Product information FAQ

€133.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 60 mm
Width: 44 mm
Sealing (bearing): Sealed on both sides
Radial clearance: CN (Normal)
Maintenance free: Nein
Outer diameter: 90 mm

Product description

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings.

Designed for radial and combined radial and axial loads
Long service life
Minimal maintenance
Suitable for heavy static, alternating or impact loads

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 60 mm
Width: 44 mm
Sealing (bearing): Sealed on both sides
Radial clearance: CN (Normal)
Maintenance free: Nein
Outer diameter: 90 mm
Material, inner ring: Bearing steel
Maintenance: Relubrication required
Material, outer ring: Bearing steel
Sealing type: Double-lip
Width, outer ring: 36
Relubrication feature: With
Basic static load rating: 1220
Radial internal clearance: CN
Basic dynamic load rating: 245
Sealing: Seal on both sides
Width, inner ring: 44
Bore diameter: 60
Outside diameter: 90
Sliding contact surface combination: Steel/steel, standard

Brand SKF
01390021
EAN 7316576609435
Supplier number SKF GE 60 ES-2RS

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this SKF plain bearing?: The bearing has a 60 mm bore diameter, a 90 mm outside diameter, and a width of 44 mm.
Is this spherical plain bearing maintenance-free?: No, this steel-on-steel bearing requires regular maintenance and relubrication through the lubrication holes and groove.
What type of seal does the GE 60 ES-2RS have?: It is equipped with a 2RS double-lip contact seal on both sides to keep out dirt and moisture.
What radial internal clearance does this bearing have?: This model features standard normal radial internal clearance (CN).
What loads is this spherical plain bearing suitable for?: It is designed to accommodate heavy radial loads as well as combined radial and axial loads.
