SKF

SKF GEH 60 ES-2LS joint bearing 60 x 105 x 63 mm

Recommended Retail Price €527.29
260.95 tax incl.
€215.66 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

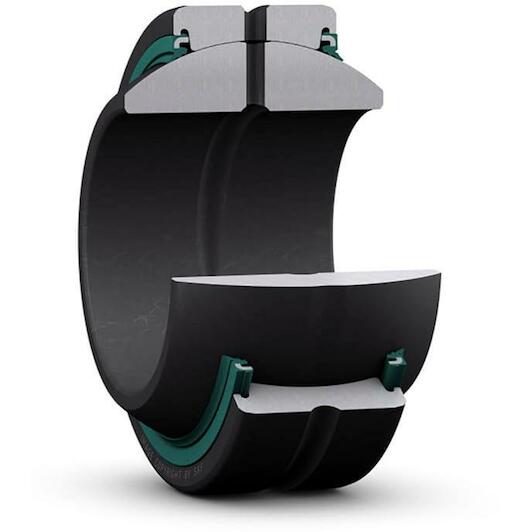

These radial spherical plain bearings have a steel/steel sliding contact surface combination and a triple-lip, heavy-duty contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.

  • Designed for radial and combined radial and axial loads
  • Long service life
  • Minimal maintenance
  • Suitable for heavy static, alternating or impact loads
  • Enable larger tilt angles
Key features according to our expert
  • Inner diameter: 60 mm
  • Width: 63 mm
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Maintenance free: Nein
  • Outer diameter: 105 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571782348
  • Supplier number: SKF GEH 60 ES-2LS
Inner diameter
60 mm
Width
63 mm
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Maintenance free
Nein
Outer diameter
105 mm
Material, inner ring
Bearing steel
Maintenance
Relubrication required
Material, outer ring
Bearing steel
Sealing type
Triple-lip
Width, outer ring
40
Relubrication feature
With
Basic static load rating
1560
Radial internal clearance
CN
Basic dynamic load rating
315
Sealing
Seal on both sides
Width, inner ring
63
Bore diameter
60
Outside diameter
105
Sliding contact surface combination
Steel/steel, standard
