SKF

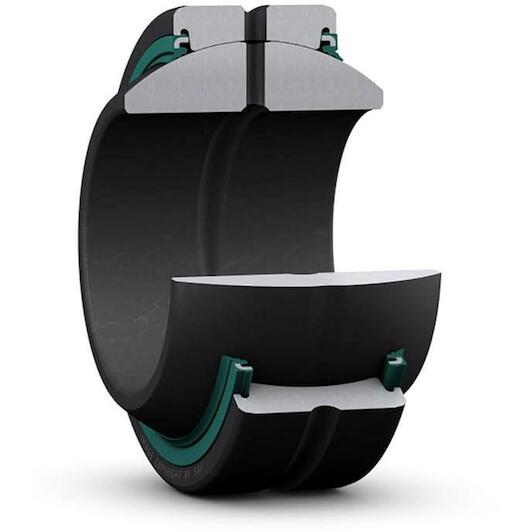

SKF GEH 80 ES-2LS joint bearing 80 x 130 x 75 mm

Recommended Retail Price €906.53
448.80 tax incl.
€370.91 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • These radial spherical plain bearings have a steel/steel sliding contact surface combination and a triple-lip, heavy-duty contact seal on both sides. The bearings require maintenance and can be relubricated via lubrication holes and an annular groove in both rings. Compared to the GE series, they have a wider inner ring and a larger outside diameter, which enable higher load ratings and larger tilt angles.

Avantages

  • Designed for radial and combined radial and axial loads
  • Long service life
  • Minimal maintenance
  • Suitable for heavy static, alternating or impact loads
  • Enable larger tilt angles
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 75 mm
  • Seal (bearing): Double-sided sealed
  • Radial clearance: CN (Normal)
  • Maintenance free: Nein
  • Outer diameter: 130 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316571782478
  • Supplier number: SKF GEH 80 ES-2LS
Inner diameter
80 mm
Width
75 mm
Seal (bearing)
Double-sided sealed
Radial clearance
CN (Normal)
Maintenance free
Nein
Outer diameter
130 mm
Sealing
Seal on both sides
Sealing type
Triple-lip
Width, outer ring
50 mm
Relubrication feature
With
Basic static load rating
2,450 kN
Radial internal clearance
CN
Maintenance
Relubrication required
Material, inner ring
Bearing steel
Basic dynamic load rating
490 kN
Width, inner ring
75 mm
Sliding contact surface combination
Steel/steel, standard
Bore diameter
80 mm
Outside diameter
130 mm
Material, outer ring
Bearing steel
