Which shaft diameter is this adapter sleeve suitable for?

The SKF H 2322 adapter sleeve is designed for cylindrical shafts with a 100 mm diameter.

What items are included with the sleeve?

It comes complete with a KM 22 lock nut and an MB 22 lock washer.

What is the thread size of this adapter sleeve?

This adapter sleeve features an M110x2 metric thread.

What is the taper of this adapter sleeve?

The SKF H 2322 has an external taper ratio of 1:12.

What is the purpose of an adapter sleeve?

It is used to mount bearings with a tapered bore onto smooth or stepped cylindrical shafts.

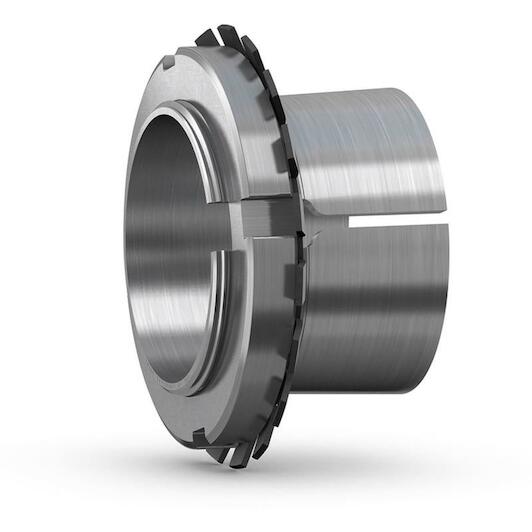

SKF H 2322 coupling sleeve for metric shafts 100 x 105 mm M110x2

Supplier number: SKF H 2322 | EAN 7316577008770

Recommended Retail Price €420.87

208.20 tax incl.

€172.07 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable shaft mounting with Skf

Practical benefits

Simple and secure mounting: You locate bearings with a tapered bore onto smooth or stepped cylindrical shafts effortlessly.
Complete and reliable locking: With the included KM lock nut and MB lock washer, you secure the assembly against loosening.
Exact metric fit: Featuring a 100 mm bore diameter and M110X2 thread size, you achieve a precise and firm grip.

In a nutshell

The right choise for

With the Skf h 2322 adapter sleeve, you can mount bearings with a tapered bore securely onto smooth or stepped cylindrical shafts. Designed for 100 mm diameter shafts, it features a 105 mm width, an M110X2 thread, and a 1:12 taper ratio. Supplied complete with a km 22 lock nut and mb 22 lock washer, this assembly prevents axial slippage and locks firmly against vibrations under heavy operating loads. It gives you full control when adjusting radial internal clearance during industrial maintenance or machinery assembly.

Product information FAQ

€208.20

In stock - tax incl.

Key features according to our expert

Inner diameter: 100 mm
Width: 105 mm
Thread size*: M110 x 2

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

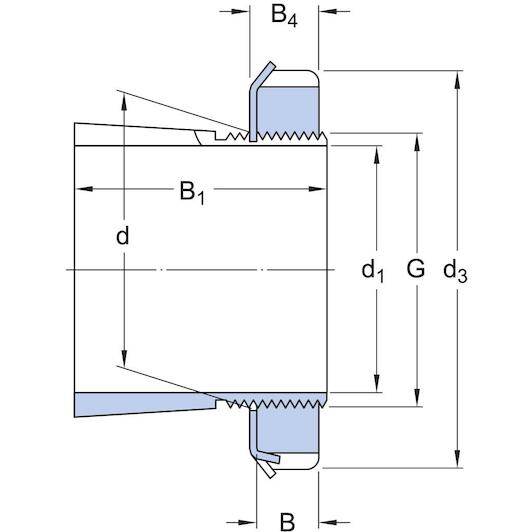

All Features

Inner diameter: 100 mm
Width: 105 mm
Thread size*: M110 x 2
Bore diameter: 100
Taper: 1:12
Holes for oil injection: Without
Thread designation: M110x2

Brand SKF
01230553
EAN 7316577008770
Supplier number SKF H 2322

Frequently asked questions about this product

Answered by specialists

Which shaft diameter is this adapter sleeve suitable for?: The SKF H 2322 adapter sleeve is designed for cylindrical shafts with a 100 mm diameter.
What items are included with the sleeve?: It comes complete with a KM 22 lock nut and an MB 22 lock washer.
What is the thread size of this adapter sleeve?: This adapter sleeve features an M110x2 metric thread.
What is the taper of this adapter sleeve?: The SKF H 2322 has an external taper ratio of 1:12.
What is the purpose of an adapter sleeve?: It is used to mount bearings with a tapered bore onto smooth or stepped cylindrical shafts.
