What is this SKF adapter sleeve used for?

The SKF H 3130 adapter sleeve is used to locate bearings with a tapered bore onto cylindrical shafts.

What shaft diameter is compatible with this sleeve?

This adapter sleeve has a bore diameter of 135 mm and fits metric shafts of the same diameter.

Are the locking components included?

Yes, this adapter sleeve comes complete with a KM 30 lock nut and an MB 30 lock washer.

What are the main dimensions and thread size?

The sleeve features a width of 111 mm, a 1:12 taper, and an M150x2 thread designation.

Can this adapter sleeve be used on plain and stepped shafts?

Yes, you can mount this sleeve on both plain and stepped cylindrical shafts.

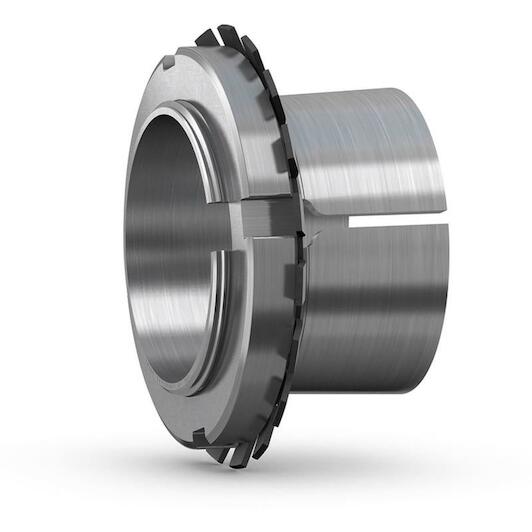

SKF H 3130 Bushing for metric axles 135 x 111 mm M150x2

Supplier number: SKF H 3130 | EAN 7316577009043

Recommended Retail Price €912.82

451.80 tax incl.

€373.39 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 3 products in stock.

Ordered before 20:00 - delivered tomorrow 09/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Secure bearing mounting on shafts

Practical benefits

Simple shaft mounting process: You easily mount tapered bore bearings onto smooth or stepped cylindrical shafts of 135 mm.
Reliable locking system included: The supplied KM lock nut and MB lock washer keep your bearing firmly locked in position.
Accurate fit for H 3130: With an M150X2 thread and 111 mm width, you achieve stable mechanical clamping during heavy operation.

In a nutshell

The right choise for

With the Skf h 3130 adapter sleeve, you can securely and accurately mount tapered bore bearings onto 135 mm cylindrical shafts. Whether working on plain or stepped shafts in gearboxes or industrial machinery, this sleeve simplifies bearing installation and precise clearance adjustment. The included km 30 lock nut and mb 30 lock washer provide dependable axial locking to prevent displacement under load. Featuring an accurate M150X2 thread and a width of 111 mm, this sleeve ensures a stable, reliable fit for all your assembly and maintenance tasks.

Product information FAQ

€451.80

In stock - tax incl.

Key features according to our expert

Inner diameter: 135 mm
Width: 111 mm
Thread size*: M150 x 2

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

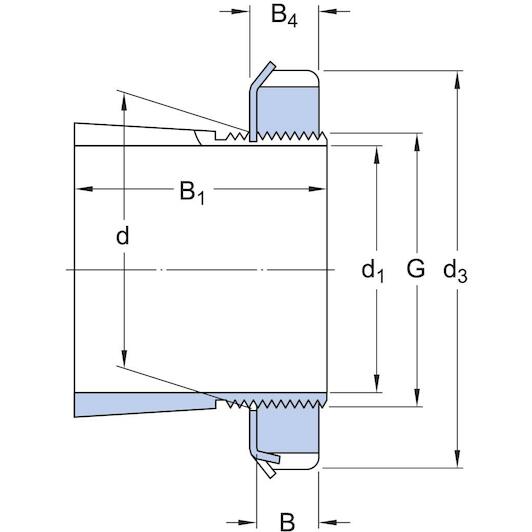

All Features

Inner diameter: 135 mm
Width: 111 mm
Thread size*: M150 x 2
Bore diameter: 135
Taper: 1:12
Holes for oil injection: Without
Thread designation: M150x2

Brand SKF
01230577
EAN 7316577009043
Supplier number SKF H 3130

Frequently asked questions about this product

Answered by specialists

What is this SKF adapter sleeve used for?: The SKF H 3130 adapter sleeve is used to locate bearings with a tapered bore onto cylindrical shafts.
What shaft diameter is compatible with this sleeve?: This adapter sleeve has a bore diameter of 135 mm and fits metric shafts of the same diameter.
Are the locking components included?: Yes, this adapter sleeve comes complete with a KM 30 lock nut and an MB 30 lock washer.
What are the main dimensions and thread size?: The sleeve features a width of 111 mm, a 1:12 taper, and an M150x2 thread designation.
Can this adapter sleeve be used on plain and stepped shafts?: Yes, you can mount this sleeve on both plain and stepped cylindrical shafts.
