SKF

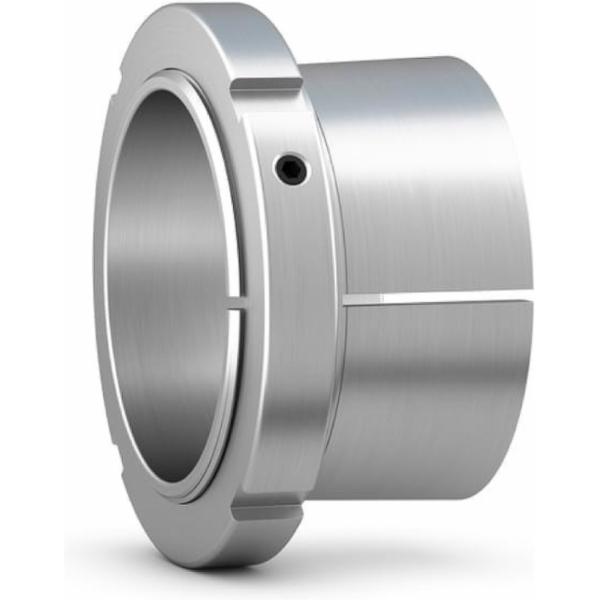

SKF H 317 E tension sleeve for metric shafts 75 x 63 mm M85x2

This article is not available

Product description:

  • Pull bushing + Spacer washer H
  • With these bushings, the E version, the standard KM nut is replaced by a KMF locknut
Key features according to our expert
  • Inner diameter: 75 mm
  • Width: 63 mm
  • Thread nominal size*: M85 x 2

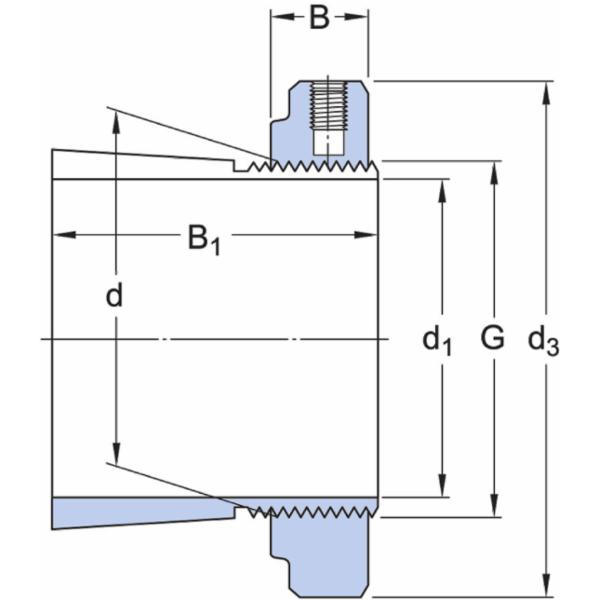

Specifications / All features
  • Brand: SKF
  • EAN: 7316571206608
  • Supplier number: SKF H 317 E
Inner diameter
75 mm
Width
63 mm
Thread nominal size*
M85 x 2
Bore diameter
75 mm
Taper
1:12
Holes for oil injection
Without
Thread designation
M85x2
