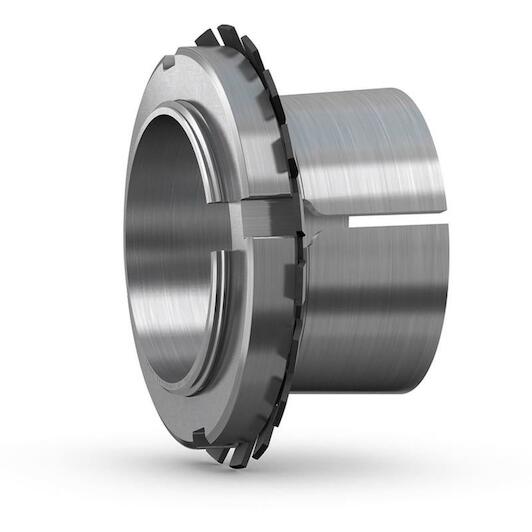

SKF H 322 socket for metric axles 100 x 77 mm M110x2

Supplier number: SKF H 322 | EAN 7316577008619

Recommended Retail Price €349.76

172.95 tax incl.

€142.93 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered as of 30/09/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Secure bearing seating with Skf H 322

Practical benefits

Easy and flexible mounting: You can mount tapered bore bearings effortlessly onto smooth or stepped metric shafts with a 100 mm diameter.
Complete reliable locking mechanism: The included KM lock nut and MB lock washer keep your bearing securely locked during operation.
Accurate and durable fit: With an M110X2 thread and a 77 mm width, you achieve stable and vibration-resistant bearing location.

In a nutshell

The right choise for

With the Skf h 322 adapter sleeve, you can easily and securely mount tapered bore bearings onto plain or stepped cylindrical shafts with a 100 mm diameter. You achieve a reliable axial location without needing shaft shoulders or complex shaft machining. The included km lock nut and mb lock washer provide vibration-resistant locking, keeping your bearing firmly positioned during operation. Thanks to the M110X2 thread, a 77 mm width, and a standard 1:12 taper, you get an accurate fit that also simplifies bearing dismounting and repositioning during routine maintenance.

Product information FAQ

€172.95

In stock - tax incl.

Key features according to our expert

Inner diameter: 100 mm
Width: 77 mm
Thread size*: M110 x 2

Product description

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. They are slit and are supplied complete with a KM lock nut and a MB lock washer.

Easy to install
Complete with lock nut
Complete with locking device

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 100 mm
Width: 77 mm
Thread size*: M110 x 2
Bore diameter: 100
Taper: 1:12
Holes for oil injection: Without
Thread designation: M110x2

Brand SKF
01230718
EAN 7316577008619
Supplier number SKF H 322

Frequently asked questions about this product

Answered by specialists

What is the purpose of the SKF H 322 adapter sleeve?: It is used to locate bearings with a tapered bore (1:12) onto plain or stepped cylindrical shafts.
What shaft diameter is compatible with this sleeve?: This adapter sleeve has a 100 mm bore diameter and fits metric shafts with a 100 mm diameter.
What are the main dimensions of the SKF H 322?: It features an inside diameter of 100 mm, a width of 77 mm, and an M110x2 thread.
What is included with the SKF H 322?: The adapter sleeve is supplied complete with a KM lock nut and an MB lock washer.
What taper does this adapter sleeve have?: It has a standard 1:12 taper for mounting tapered-bore bearings.
