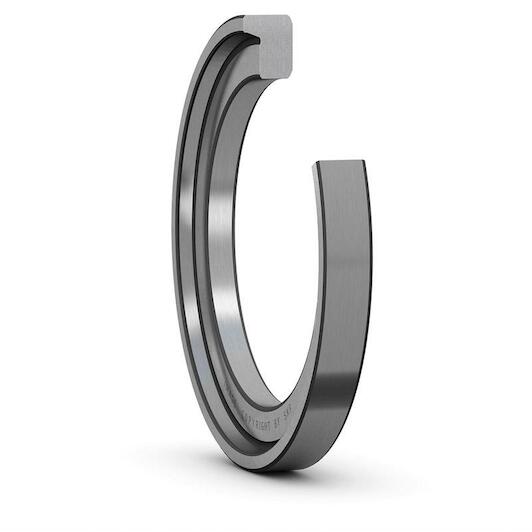

Product description:
- Angle rings are intended to:
- For NU type cylindrical roller bearings, locking up the shaft in one direction
- For cylindrical roller bearings of type NJ, to trap the shaft in both directions
To achieve a locating bearing design, an adjusting ring of the same width must be used on both sides of the bearing
Key features according to our expert
-
Inner diameter: 40 mm
-
Outer diameter: 57,55 mm
-
Width: 7 mm
Specifications / All features
-
Brand:
SKF
-
01070228
-
EAN:
7316570339802
-
Supplier number:
SKF HJ 308 EC
- Inner diameter
- 40 mm
- Outer diameter
- 57,55 mm
- Width
- 7 mm
- Outside diameter
- 57.55 mm
- Material
- Bearing steel
- Coating
- Without
- Bore diameter
- 40 mm
- Width in bore
- 7 mm
