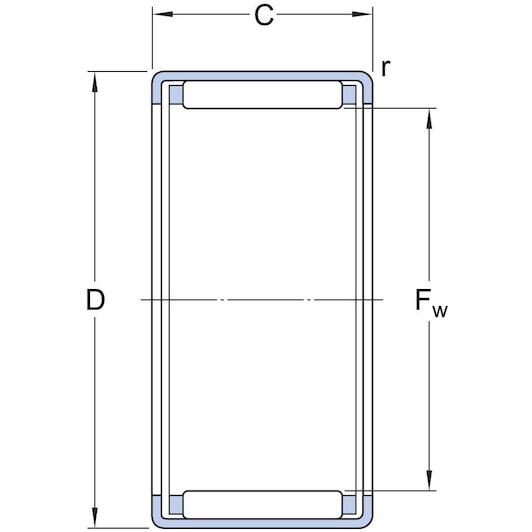

What are the dimensions of the SKF HK 3026 drawn cup needle roller bearing?

The bearing has an inside diameter of 30 mm, an outside diameter of 37 mm, and a width of 26 mm.

Does this needle roller bearing include an inner ring?

No, this version has no inner ring and runs directly on a hardened, ground shaft or requires a separate inner ring.

What is the design of the SKF HK 3026?

It is a single-row drawn cup needle roller bearing with open ends and a sheet steel cage.

Does this bearing come with integrated seals?

No, this drawn cup needle roller bearing is open and has no integrated seals.

What applications is the SKF HK 3026 suitable for?

It is ideal for compact bearing arrangements with limited radial space requiring high radial load capacity.

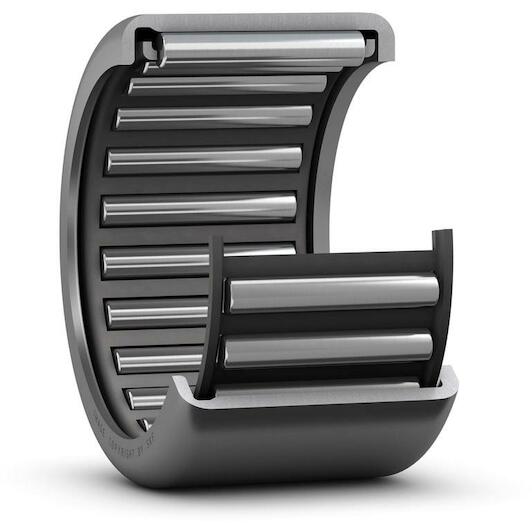

SKF HK 3026 single-row needle roller bearing without inner ring 30 x 37 x 26 mm

Supplier number: SKF HK 3026 | EAN 7316577010544

Recommended Retail Price €25.20

12.40 tax incl.

€10.25 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Compact support for high radial loads

Practical benefits

Skf HK 3026 needle bearing: You achieve rigid and reliable rotational guidance even in tightly constrained installation spaces.
Exceptional radial capacity: The large number of needle rollers distributes heavy radial forces evenly to maintain optimal machinery performance.
Sturdy sheet steel cage: The precise metal cage retains and guides the rollers accurately to deliver smooth and durable operation.

In a nutshell

The right choise for

With the Skf hk 3026 drawn cup needle roller bearing, you achieve rigid and dependable rotational performance in tightly constrained spaces. Because this single-row bearing operates without an inner ring directly on a hardened shaft, you save critical housing volume and weight across gearboxes, pumps, and industrial drives. The sturdy sheet steel cage accurately retains and guides the needle rollers to deliver smooth rotation and exceptional radial load distribution. Featuring an open design with dimensions of 30 x 37 x 26 mm, it provides an efficient solution for compact machinery builds.

Product information FAQ

€12.40

In stock - tax incl.

Key features according to our expert

Inner diameter: 30 mm
Width: 26 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (Needle cage): Open
Outer diameter: 37 mm

Product description

Drawn cup needle roller bearings are typically used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very compact and economical bearing arrangement is required. Owing to their large number of rollers, the bearings have a high load carrying capacity and stiffness.

High radial load carrying capacity
High stiffness
Very low cross-sectional height

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 30 mm
Width: 26 mm
Number of rows: 1
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Material (cage): Sheet steel
Version (needle cage): Open
Outer diameter: 37 mm
Basic static load rating: 54
Bearing part: Bearing without inner ring
Tolerance class: Normal
Aligning feature: Without
Lubricant: None
Bore diameter of needle roller complement: 30
Relubrication feature: Without
Reference speed: 8000
Number of flanges, outer ring: 2
Cage: Sheet steel
Sealing: Without
Basic dynamic load rating: 27
Outer ring type: Drawn cup with open ends
Limiting speed: 9000
Coating: Without
Outer diameter: 37
Material, bearing: Bearing steel

Brand SKF
01290756
EAN 7316577010544
Supplier number SKF HK 3026

Frequently asked questions about this product

Answered by specialists

What are the dimensions of the SKF HK 3026 drawn cup needle roller bearing?: The bearing has an inside diameter of 30 mm, an outside diameter of 37 mm, and a width of 26 mm.
Does this needle roller bearing include an inner ring?: No, this version has no inner ring and runs directly on a hardened, ground shaft or requires a separate inner ring.
What is the design of the SKF HK 3026?: It is a single-row drawn cup needle roller bearing with open ends and a sheet steel cage.
Does this bearing come with integrated seals?: No, this drawn cup needle roller bearing is open and has no integrated seals.
What applications is the SKF HK 3026 suitable for?: It is ideal for compact bearing arrangements with limited radial space requiring high radial load capacity.
