SKF HNA 9-13 hinged hook spanner size 9-13

65.20 tax incl.

€53.88 excl. VAT (incl. all environmental contributions)

€65.20

On order: delivered from 21/05/2026

each

Ordered before 20:00 - delivered as of 21/05/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

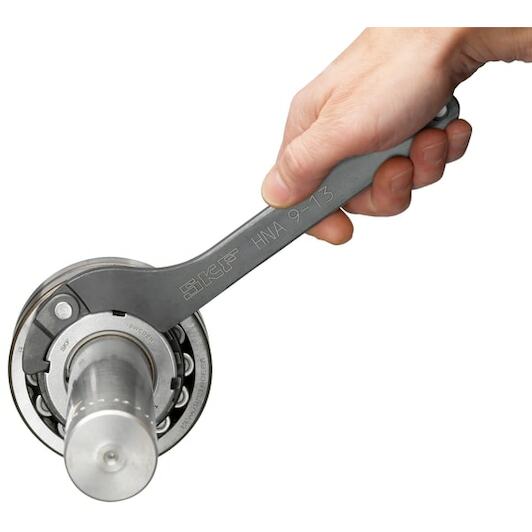

The SKF Adjustable hook spanner, size 9 - 13, has a pivoting hook that allows tightening and loosening of a variety of lock nuts. They are used to secure and adjust bearings on tapered journals, adapter sleeves and withdrawal sleeves. They are an economic solution as they fit on a variety of lock nuts with outer diameters 60 - 90 mm. To be more specific for locknuts: KM 9 - 13, KMK 9 - 13, KMFE 9 - 13, KMT 8 - 12, N 09 - 13 and M40x1,5 - M60x1,5 (DIN 1804)

Designed with a long handle and thickened pivot point they can generate high torques
Grip with rounded edges for more comfort
Drilled hole for easy storage
Laser-engraved designation for easy identification
Minimise risk of shaft and nut damage
Economic solution as it allows tightening and loosening a variety of luck nuts with outer diameters 60 - 90 mm.

Key features according to our expert

Specifications / All features

Min. diameter: 9 mm
Max. diameter: 13 mm
Fits on lock nuts inside skf split pillow block housings (snl): No
Outer diameter lock nut range: 60 - 90 mm
Minimum number of lock nut slots: 1
Material handle: Steel
Allows bearing mounting: Yes, angle method or with clearance reduction measurement
Coating: Black oxide
Material: Alloy engineering steel, hardened and tempered
Thickness: 13
Length: 290
Color code: Metallic Black
Working length: 240
