SKF

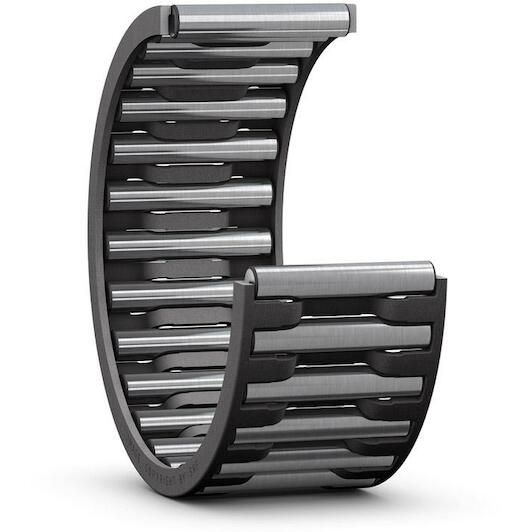

SKF K 20X24X17 single-row needle roller bearing 20 x 24 x 17 mm

Recommended Retail Price €20.90
10.20 tax incl.
€8.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Needle roller and cage assemblies are self-contained, ready-to-mount bearings without inner and outer rings. In applications where the shaft and housing bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space. As the clearance of the bearing arrangement is only affected by the roller sorting and the finish of shaft and housing, very precise bearing arrangements can be achieved.

  • High radial load carrying capacity
  • High stiffness
  • High precision
  • Lowest cross-sectional height among rolling bearings
  • Accommodate axial displacement in both directions
Key features according to our expert
  • Inner diameter: 20 mm
  • Width: 17 mm
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Material (cage): Sheet steel
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570802962
  • Supplier number: SKF K 20X24X17
Inner diameter
20 mm
Width
17 mm
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Material (cage)
Sheet steel
Outer diameter
24 mm
Basic static load rating
20.8
Bearing part
Needle roller and cage assembly
Tolerance class
Normal
Aligning feature
Without
Reference speed
20000
Bore diameter of needle roller complement
20
Relubrication feature
Without
Outside diameter of needle roller complement
24
Lubricant
None
Cage
Sheet steel
Sealing
Without
Number of rows
1
Outer ring type
Not applicable
Limiting speed
22000
Basic dynamic load rating
12.5
Coating
Without
Outside diameter
24
Material, bearing
Bearing steel
