What are the main dimensions of this SKF cam follower?

It features an outer diameter of 26 mm, a stud diameter of 10 mm, and a total width of 36.2 mm.

Does this cam follower include an eccentric collar?

No, this version is designed without an eccentric collar.

What is the outer ring profile of this bearing?

The outer ring has a crowned running surface to help reduce edge stresses.

Can this cam follower be relubricated?

Yes, it features integrated sealing and can be relubricated via the threaded stud.

What applications is the SKF KRV 26 PPA suitable for?

It is suitable for cam drives, conveyor systems, and linear or curved guide tracks.

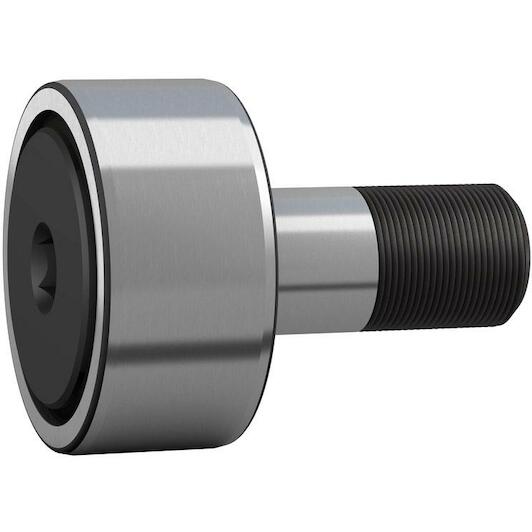

SKF KRV 26 PPA cam roller with integrated seal and relubrication 26 mm - KRV 26 PP

Supplier number: SKF KRV 26 PP | EAN 7316577712493

Recommended Retail Price €143.60

70.80 tax incl.

€58.51 excl. VAT (incl. all environmental contributions)

On stock - immediately available

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Reliable tracking with Skf followers

Practical benefits

High radial load capacity: With a full complement needle design, you can handle high dynamic and static loads across diverse track applications.
Effective integral sealing: The integrated seal keeps dust and contaminants out, ensuring you maintain a long and dependable operating life.
Quick and easy relubrication: You can easily regrease the bearing directly through the threaded stud without requiring full disassembly.

In a nutshell

The right choise for

With the Skf krv 26 ppa cam follower, you ensure dependable tracking across demanding cam drives, conveyor systems, and linear guide tracks. Built with a full complement needle roller design, it easily handles high radial loads and peak stresses. The crowned outer ring profile with a 26 mm outer diameter effectively accommodates misalignment and reduces edge stresses, while the integral seal protects against contaminants and moisture. Featuring a 10 mm threaded stud, this track roller allows straightforward mounting and quick relubrication without full disassembly, keeping your industrial machinery operating smoothly and reliably.

Product information FAQ

€70.80

In stock - tax incl.

Key features according to our expert

Outer diameter: 26 mm
Stud diameter: 10 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 36,2 mm

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

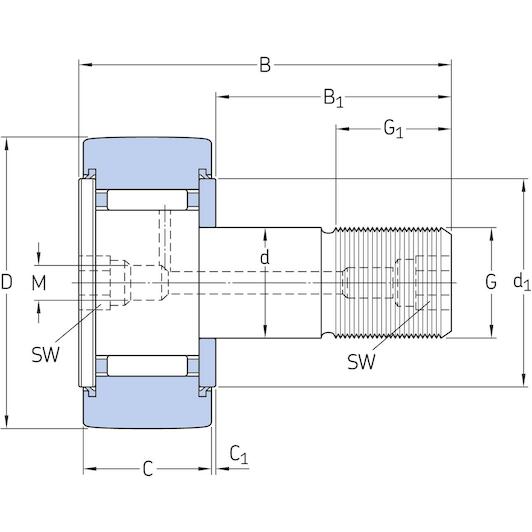

All Features

Outer diameter: 26 mm
Stud diameter: 10 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 36,2 mm
Width, outer ring: 12
Basic static load rating: 11.6
Relubrication feature: Centre of each stud end
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Contact
Cage: Without
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 26
Rolling elements: Needle rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 3600
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 6.44
Coating: Without
Length: 36.2
Stud alignment: Centric

Brand SKF
01211045
EAN 7316577712493
Supplier number SKF KRV 26 PP

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of this SKF cam follower?: It features an outer diameter of 26 mm, a stud diameter of 10 mm, and a total width of 36.2 mm.
Does this cam follower include an eccentric collar?: No, this version is designed without an eccentric collar.
What is the outer ring profile of this bearing?: The outer ring has a crowned running surface to help reduce edge stresses.
Can this cam follower be relubricated?: Yes, it features integrated sealing and can be relubricated via the threaded stud.
What applications is the SKF KRV 26 PPA suitable for?: It is suitable for cam drives, conveyor systems, and linear or curved guide tracks.
