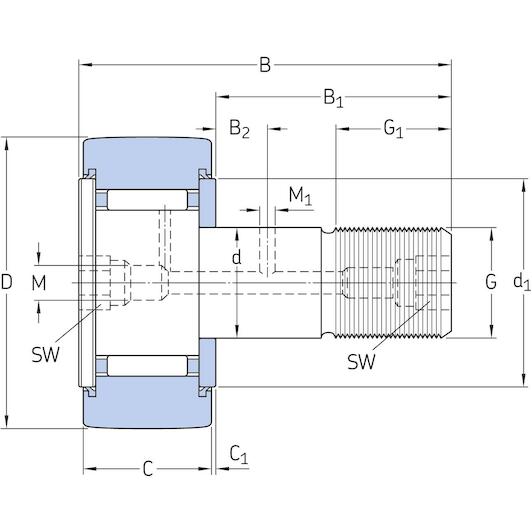

What are the main dimensions of the SKF KRV 32 PPA?

This cam follower has an outer diameter of 32 mm, a stud diameter of 12 mm, and an overall width of 40.2 mm.

What outer ring profile does this cam follower have?

The outer ring has a crowned (spherical) running surface to help reduce edge stresses.

Does this model include an eccentric collar?

No, this model is designed without an eccentric collar for concentric mounting.

Can the SKF KRV 32 PPA be relubricated?

Yes, it is equipped with a relubrication feature and integrated contact seals.

What is the thread size of the mounting stud?

The stud features an M12x1.5 metric thread.

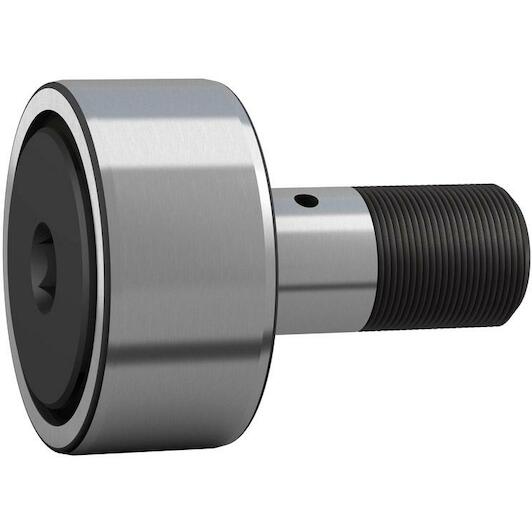

SKF KRV 32 PPA cam roller with integrated seal and relubrication 32 mm - KRV 32 PP

Supplier number: SKF KRV 32 PP | EAN 7316570273403

Recommended Retail Price €180.39

88.95 tax incl.

€73.51 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Ordered before 20:00 - delivered tomorrow 10/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High load capacity for demanding track systems

Practical benefits

Exceptional radial capacity: The full complement needle design allows you to handle heavy radial loads and sudden shocks smoothly.
Reliable integral sealing: Advanced built-in seals protect internal components against dust and retain grease during continuous operation.
Fast stud mounting: You install this KRV 32 PPA directly into your equipment using the integrated 12 mm threaded stud.

In a nutshell

The right choise for

With the Skf krv 32 ppa cam follower, you ensure dependable, high-capacity tracking in demanding conveyor systems and cam drives. Built with a full complement needle roller set, it easily handles heavy radial loads and sudden shocks. The crowned outer ring with a 32 mm diameter significantly reduces edge stresses caused by misalignment or tilting. Thanks to the integrated 12 mm stud with M12 threading, you can mount the roller directly without fabricating a separate shaft. In addition, integrated ppa seals and a relubrication feature provide outstanding service life in harsh industrial environments.

Product information FAQ

€88.95

In stock - tax incl.

Key features according to our expert

Outer diameter: 32 mm
Stud diameter: 12 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 40,2 mm

Product description

Cam followers (stud-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with a threaded solid stud instead of an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied sealed and ready-to-mount. The bearings can be relubricated via the stud.

High radial load carrying capacity
Accommodate axial loads due to skew or tilting
Long service life
Easy to mount
Sealed for increased reliability, with relubrication feature

Documents

⤓ Technical data sheet PDF

All Features

Outer diameter: 32 mm
Stud diameter: 12 mm
With eccentric collar: NO
Number of rows: 1
Outer ring profile: Spherical
Width: 40,2 mm
Width, outer ring: 14
Basic static load rating: 15.6
Relubrication feature: Centre of each stud end and radial hole in stud shank
Lubricant: Grease
Feature for tightening: Hexagonal recess
Sealing type: Contact
Cage: Without
Tolerance class: Other
Material, bearing: Bearing steel
Functional outside diameter: 32
Rolling elements: Needle rollers
Radial internal clearance: Between C2 and CN
Limiting speed: 3200
Sealing: Seal on both sides
Number of flanges, outer ring: 2
Basic dynamic load rating: 9.13
Coating: Without
Length: 40.2
Stud alignment: Centric

Brand SKF
01211046
EAN 7316570273403
Supplier number SKF KRV 32 PP

Frequently asked questions about this product

Answered by specialists

What are the main dimensions of the SKF KRV 32 PPA?: This cam follower has an outer diameter of 32 mm, a stud diameter of 12 mm, and an overall width of 40.2 mm.
What outer ring profile does this cam follower have?: The outer ring has a crowned (spherical) running surface to help reduce edge stresses.
Does this model include an eccentric collar?: No, this model is designed without an eccentric collar for concentric mounting.
Can the SKF KRV 32 PPA be relubricated?: Yes, it is equipped with a relubrication feature and integrated contact seals.
What is the thread size of the mounting stud?: The stud features an M12x1.5 metric thread.
