How is the SKF LAGF 18 operated?

The pump is fully manually operated using a hand lever.

What is the maximum pressure and volume per stroke?

It delivers a maximum pressure of 30 bar and a volume of 45 cm³ per stroke.

What is included in the scope of delivery?

You receive the grease pump with lever, a drum cover, and a follower plate.

What is the main purpose of this pump?

It is designed for clean and quick refilling of grease guns directly from standard drums.

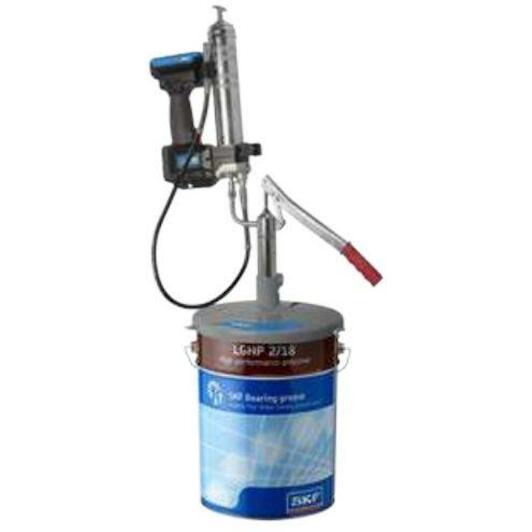

SKF LAGF 18 grease filler pump with inner diameter 265-285 mm, maximum inner height 420 mm

Supplier number: SKF LAGF 18 | EAN 7316571359397

363.95 tax incl.

€300.79 excl. VAT (incl. all environmental contributions)

On order: delivered from 22/10/2026

Ordered before 20:00 - delivered as of 22/10/2026
Free shipping
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

Clean and efficient grease gun refilling

Practical benefits

Skf LAGF 18 grease pump: You refill grease guns smoothly and cleanly straight from standard 18 kg grease pails.
High volume per stroke: A 45 ml stroke volume delivers rapid grease transfer with a maximum pressure of 30 bar.
Reliable contamination protection: Supplied with a pump handle, drum cover, and follower plate, it keeps your lubricant free from dirt.

In a nutshell

The right choise for

With the Skf lagf 18 grease filler pump, you refill manual grease guns quickly, cleanly, and without air pockets directly from standard 18 kg grease drums. Operated manually with a sturdy pump handle, it delivers a generous 45 ml stroke volume at a maximum pressure of 30 bar for smooth, controlled lubricant transfer. The included drum cover and follower plate scrape the drum walls cleanly while protecting your grease from dirt and contamination. Suitable for drums with an inside diameter of 265 to 285 mm and a maximum inside height of 420 mm, this pump ensures dependable and efficient lubrication management.

Product information FAQ

€363.95

tax incl.

Key features according to our expert

Operation (pump): Manual

Scope of delivery

grease pump with pump handle, drum cover plate, drum followerplate

Product description

Best lubrication practices say that each type of grease requires an individual grease gun and that the refilling has to be a clean process. SKF Grease Filler Pumps are designed to achieve this goal. The LAGF 18 is operated with a mechanical lever and enables optimum cleanliness for filling grease guns from a 18 kg drum.

Quick filling with low pressure high stroke volume
Easy usage with all items included
Tested and approved for all SKF greases
Ideal for usage together with SKF Bearing Packer VKN 550

Documents

⤓ Technical data sheet PDF

All Features

Operation (pump): Manual
Material handle: steel with plastic grip
Mobility: stationary
Maximum pressure: 3
Suitable drum inside height (max): 420
Recommended storage temperature: 10-40
Optional trolley: LAGT 18 - 50
Ambient temperature range: 10-40
Suitable drum inner diameter: 265-285
Power source: manual
Volume per stroke: 45
Operation: manual pump with handle
Relative humidity: < 65 %
Material: steel
Connection: greasing point: DIN 1283 nipple
Volume: grease pump with pump handle, drum cover plate, drum followerplate
Hose: No

Brand SKF
01901644
EAN 7316571359397
Supplier number SKF LAGF 18

Frequently asked questions about this product

Answered by specialists

Which drums are compatible with this grease filler pump?: It fits 18 kg drums with an inside diameter of 265 to 285 mm and a maximum inside height of 420 mm.
How is the SKF LAGF 18 operated?: The pump is fully manually operated using a hand lever.
What is the maximum pressure and volume per stroke?: It delivers a maximum pressure of 30 bar and a volume of 45 cm³ per stroke.
What is included in the scope of delivery?: You receive the grease pump with lever, a drum cover, and a follower plate.
What is the main purpose of this pump?: It is designed for clean and quick refilling of grease guns directly from standard drums.
