SKF

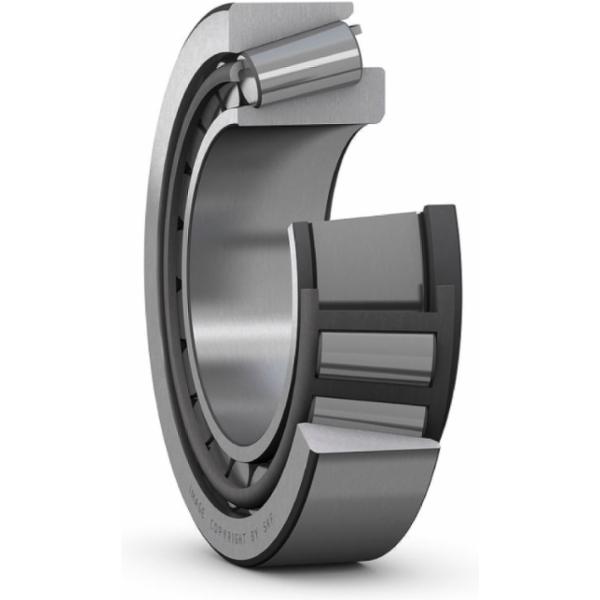

SKF M 336948/912 single-row tapered roller bearing 178.6 x 265.1 x 51.6 mm with contact angle 12.8°

This article is not available

Product description:

  • Tapered roller bearings have an inner and outer ring with tapered raceways between which tapered roller bodies are arranged
  • Due to their design, tapered roller bearings are ideally suited for taking combined axial and radial loads
  • The axial load carrying capacity of bearings is largely paid for by the contact angle
  • The larger this angle is, the higher the axial load carrying capacity is
  • Tapered roller bearings can generally be separated into the cone, consisting of the inner ring with cage and roller bodies and the cup (outer ring)
Key features according to our expert
  • Inner diameter: 178,595 mm
  • Width: 57,15 mm
  • Number of rows: 1
  • Outer diameter: 265,112 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570797282
  • Supplier number: SKF M 336948/912
Inner diameter
178,595 mm
Width
57,15 mm
Number of rows
1
Outer diameter
265,112 mm
Arrangement of contact angle (double-row bearing)
Not applicable
Cage
Sheet metal
Width, outer ring
38.895 mm
Lubricant
None
Reference speed
1,700 r/min
Relubrication feature
Without
Matched arrangement
No
Basic static load rating
880 kN
Bearing part
Complete bearing
Locating feature, bearing outer ring
None
Sealing
Without
Contact angle
12.750000000032 °
Width, total
57.15 mm
Width, inner ring
57.15 mm
Limiting speed
2,200 r/min
Bore diameter
178.595 mm
Basic dynamic load rating
532 kN
Coating
Without
Outside diameter
265.112 mm
Bore type
Cylindrical
