SKF

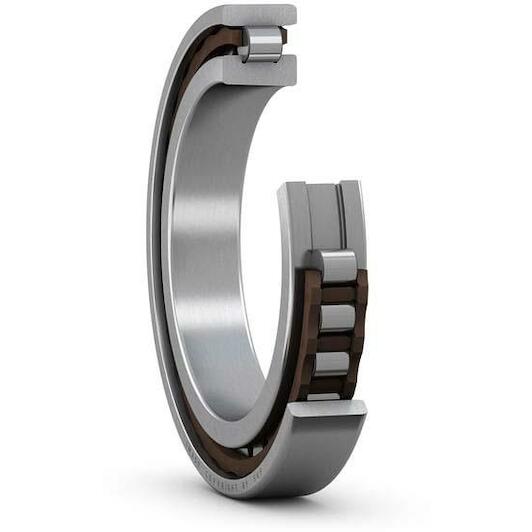

SKF N 1016 KPHA/SP super-precision single row cylindrical roller bearing 80 mm

Recommended Retail Price €2,280.26
1,128.80 tax incl.
€932.89 excl. VAT (incl. all environmental contributions)
On order: delivered from 26/05/2026
each

  • Ordered before 20:00 - delivered as of 26/05/2026
  • Free shipping
  • Delivery by DHL
  • Delivered from Belgium

Product description

These super-precision single row cylindrical roller bearings have a tapered bore and can accommodate axial displacement of the shaft relative to the housing in both directions. They are available in basic design and high-speed design.

  • Accommodate high speeds
  • Low friction
  • Separable
Key features according to our expert
  • Inner diameter: 80 mm
  • Width: 22 mm
  • Number of rows: 1
  • Radial clearance: C1
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Bore type: Tapered
  • Outer diameter: 125 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316576946424
  • Supplier number: SKF N 1016 KPHA/SP
Inner diameter
80 mm
Width
22 mm
Number of rows
1
Radial clearance
C1
Material (cage)
Plastic
Seal (bearing)
Without seal
Bore type
Tapered
Outer diameter
125 mm
Relubrication feature
Without
Radial internal clearance
C1
Loose flange
None
Basic static load rating
86.5
Attainable speed for grease lubrication
16000
Lubricant
None
Cage
Non-metallic
Material, bearing
Bearing steel
Bearing part
Complete bearing
Number of flanges, inner ring
2
Tolerance class
Class SP (SP)
Basic dynamic load rating
66
Sealing
Without
Attainable speed for oil-air lubrication
19000
Bore diameter
80
Coating
Without
Outside diameter
125
