SKF

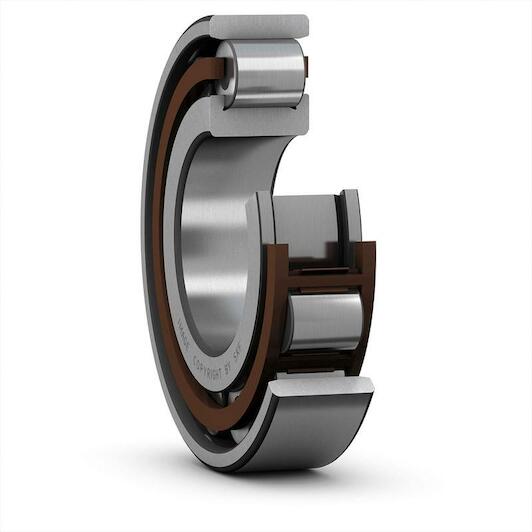

SKF N 203 ECP single-row cylindrical roller bearing 17 x 40 x 12 mm

Recommended Retail Price €140.98
69.60 tax incl.
€57.52 excl. VAT (incl. all environmental contributions)
On order: delivered from 27/05/2026
each

  • Ordered before 20:00 - delivered as of 27/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Single row cylindrical roller bearings are designed to accommodate high radial loads in combination with high speeds. Having two integral flanges on the inner ring and no flanges on the outer ring, N design bearings can accommodate axial displacement in both directions. An important feature is the separable design, which facilitates mounting and enables the bearing components to be interchanged.

  • High radial load carrying capacity
  • Low friction
  • Long service life
  • Accommodate axial displacement in both directions
  • Separable design
Key features according to our expert
  • Inner diameter: 17 mm
  • Width: 12 mm
  • Number of rows: 1
  • Radial clearance: CN (Normal)
  • Material (cage): Plastic
  • Seal (bearing): Without seal
  • Material (bearing seal): Not applicable
  • Bore type: Cylindrical
  • Outer diameter: 40 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577061805
  • Supplier number: SKF N 203 ECP
Inner diameter
17 mm
Width
12 mm
Number of rows
1
Radial clearance
CN (Normal)
Material (cage)
Plastic
Seal (bearing)
Without seal
Material (bearing seal)
Not applicable
Bore type
Cylindrical
Outer diameter
40 mm
Relubrication feature
Without
Radial internal clearance
CN
Loose flange
None
Basic static load rating
14.3
Number of flanges, inner ring
2
Reference speed
20000
Skf performance class
SKF Explorer
Lubricant
None
Cage
Non-metallic
Bearing part
Complete bearing
Tolerance class
Normal
Locating feature, bearing outer ring
None
Sealing
Without
Limiting speed
22000
Bore diameter
17
Basic dynamic load rating
20
Coating
Without
Outside diameter
40
Axial displacement capability
In both directions
