SKF

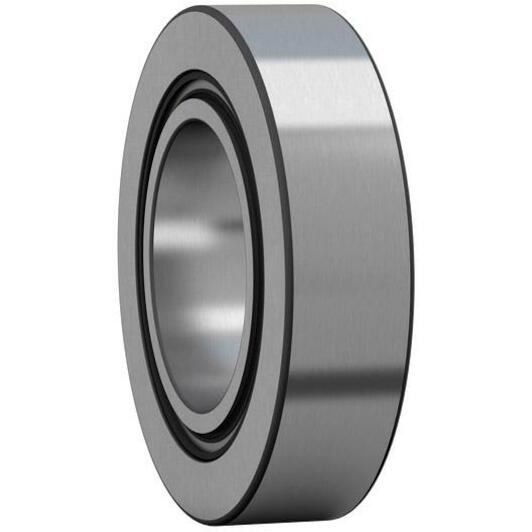

SKF NA 22/8.2RS support roller with inner ring (Yoke-type idler) 24 x 8 x 12 mm

Recommended Retail Price €78.29
38.60 tax incl.
€31.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €11.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a single row needle roller bearing with an inner ring and have a thick-walled outer ring with a crowned running surface. They are supplied sealed and are ready-to-mount. The inner ring contains a lubrication hole to facilitate relubrication. The inner ring can be mounted separately from the outer ring and roller and cage assembly.

  • High radial load carrying capacity
  • Able to withstand shock loads
  • Ready to mount
  • Separable design
  • Integral sealing prolongs bearing service life
Key features according to our expert
  • Inner diameter: 8 mm
  • Width: 12 mm
  • Outer diameter: 24 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316570900774
  • Supplier number: SKF NA 22/8.2RS
Inner diameter
8 mm
Width
12 mm
Outer diameter
24 mm
Axial guidance of outer ring
Yes
Rolling elements
Needle rollers
Functional outside diameter
24
Material, bearing
Bearing steel
Cage
With
Sealing type
Contact
Width, outer ring
11.8
Lubricant
Grease
Relubrication feature
With
Basic static load rating
4.55
Radial internal clearance
CN
Tolerance class
Other
Bearing part
Complete track roller
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
12
Outer ring profile
Crowned
Limiting speed
6700
Bore diameter
8
Number of rows
1
Basic dynamic load rating
4.68
Coating
Without
Application
Support roller
