What are the dimensions of this needle roller bearing?

The bearing has a 50 mm inner diameter, a 72 mm outer diameter, and a width of 22 mm.

Is this SKF bearing supplied with an inner ring?

Yes, model NA 4910 is a complete needle roller bearing assembly including an inner ring.

Does this needle roller bearing have seals?

No, this bearing is an open design without seals and requires external lubrication.

Can this bearing accommodate axial loads?

No, this needle roller bearing is designed for high radial loads and does not support axial forces.

Can the inner and outer rings be mounted separately?

Yes, the separable design allows you to mount the inner ring and outer ring independently.

SKF NA 4910 needle roller bearing with inner ring 50x72x22 mm

Supplier number: SKF NA 4910 | EAN 7316577012180

Recommended Retail Price €157.99

77.95 tax incl.

€64.42 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Ordered before 20:00 - delivered as of 13/10/2026
Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
Delivery by DHL
Delivered from Belgium

↓ Documents (1) ✆ Talk to a specialist

High radial capacity in tight spaces

Practical benefits

Strength with Skf NA 4910: You benefit from high radial load carrying capacity within a compact cross section, ideal for space-constrained mechanical assemblies.
Easy installation with inner ring: The included inner ring allows you to mount the bearing directly onto standard shafts without requiring specialized hardening.
Smooth guidance and stability: Integral flanges and a precision cage ensure you achieve smooth rotation and optimal roller guidance during demanding continuous operations.

In a nutshell

The right choise for

With the Skf na 4910 needle roller bearing, you easily handle heavy radial loads in space-constrained machinery. Featuring compact dimensions of 50X72X22 mm and machined rings, this bearing delivers exceptional load carrying capacity and rigidity. The included inner ring enables direct installation on standard shafts without requiring hardened or ground shaft raceways. Thanks to its separable, open design, you can mount the inner and outer rings independently with ease. Integral flanges and a sheet brass cage provide precise roller guidance, helping you minimize friction and premature wear in gearboxes, pumps, and industrial drive systems.

Product information FAQ

€77.95

In stock - tax incl.

Key features according to our expert

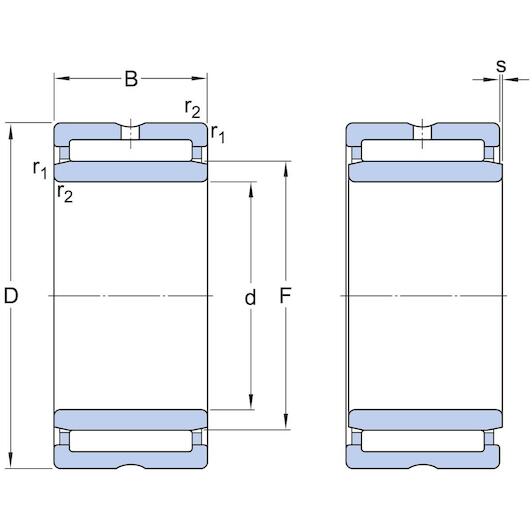

Inner diameter: 50 mm
Width: 22 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 72 mm

Product description

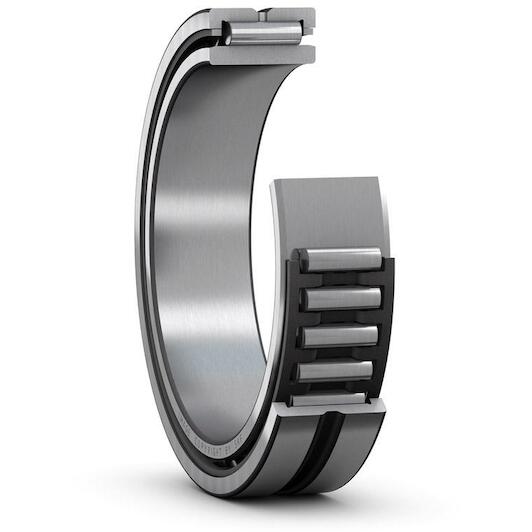

Single row needle roller bearings incorporate cylindrical rollers that are small in diameter relative to their length. Owing to their large number of rollers, the bearings have a high load carrying capacity. The outer ring includes two integral flanges to guide the bearing axially and an annular groove with one or more lubrication holes to facilitate relubrication.

High radial load carrying capacity
High stiffness
Low cross-sectional height
Accommodate axial displacement in both directions
Separable design

Documents

⤓ Technical data sheet PDF

All Features

Inner diameter: 50 mm
Width: 22 mm
Sealing (bearing): Without seals
Material (bearing seal): Not applicable
Number of rows: 1
Material (cage): Brass (sheet)
Outer diameter: 72 mm
Aligning feature: Without
Bearing part: Complete bearing
Tolerance class: Normal
Radial internal clearance: CN
Skf performance class: SKF Explorer
Basic static load rating: 85
Relubrication feature: With
Reference speed: 7000
Number of flanges, outer ring: 2
Lubricant: None
Cage: Sheet metal
Sealing: Without
Outer ring type: Machined (solid)
Limiting speed: 8000
Bore diameter: 50
Basic dynamic load rating: 55
Coating: Without
Outer diameter: 72
Material, bearing: Bearing steel

Brand SKF
01290011
EAN 7316577012180
Supplier number SKF NA 4910

Frequently asked questions about this product

Answered by specialists

What are the dimensions of this needle roller bearing?: The bearing has a 50 mm inner diameter, a 72 mm outer diameter, and a width of 22 mm.
Is this SKF bearing supplied with an inner ring?: Yes, model NA 4910 is a complete needle roller bearing assembly including an inner ring.
Does this needle roller bearing have seals?: No, this bearing is an open design without seals and requires external lubrication.
Can this bearing accommodate axial loads?: No, this needle roller bearing is designed for high radial loads and does not support axial forces.
Can the inner and outer rings be mounted separately?: Yes, the separable design allows you to mount the inner ring and outer ring independently.
