SKF

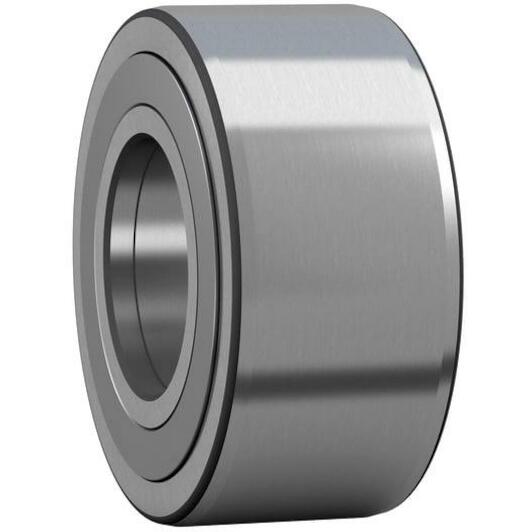

SKF NATR 20 support roller with inner ring and flange seal (Yoke-type idler) 47 x 20 x 25 mm

Recommended Retail Price €163.87
80.95 tax incl.
€66.90 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Ordered before 20:00 - delivered as of 28/05/2026
  • Shipping costs €6.99 VAT included | Free shipping for orders over a total amount of 125 euros
  • Delivery by DHL
  • Delivered from Belgium

Product description

  • Support rollers (yoke-type track rollers) are designed to run on all types of tracks and to be used in cam drives, conveyor systems, etc. They are based on a needle roller bearing with an inner ring. They have a thick-walled outer ring with a crowned running surface and are supplied ready-to-mount. A narrow gap between the outer ring and the pressed-on flange rings forms a gap-type seal. The inner ring contains a lubrication hole to facilitate relubrication.

Avantages

  • High radial load carrying capacity
  • Accommodate axial loads due to skew or tilting
  • Long service life
  • Ready to mount
  • Sealed for increased reliability, with relubrication feature
Key features according to our expert
  • Inner diameter: 20 mm
  • Outer diameter: 47 mm
  • Width: 25 mm
Specifications / All features
  • Brand: SKF
  • EAN: 7316577720306
  • Supplier number: SKF NATR 20
Inner diameter
20 mm
Outer diameter
47 mm
Width
25 mm
Functional outside diameter
47 mm
Material, bearing
Bearing steel
Cage
With
Sealing type
Gap-type
Width, outer ring
24 mm
Lubricant
Grease
Relubrication feature
With
Basic static load rating
23.2 kN
Radial internal clearance
Between C2 and CN
Tolerance class
Other
Bearing part
Complete track roller
Axial guidance of outer ring
Yes
Number of flanges, outer ring
2
Sealing
Seal on both sides
Width, total
25 mm
Outer ring profile
Crowned
Limiting speed
2,800 r/min
Bore diameter
20 mm
Number of rows
1
Basic dynamic load rating
16.8 kN
Coating
Without
Rolling elements
Needle rollers
