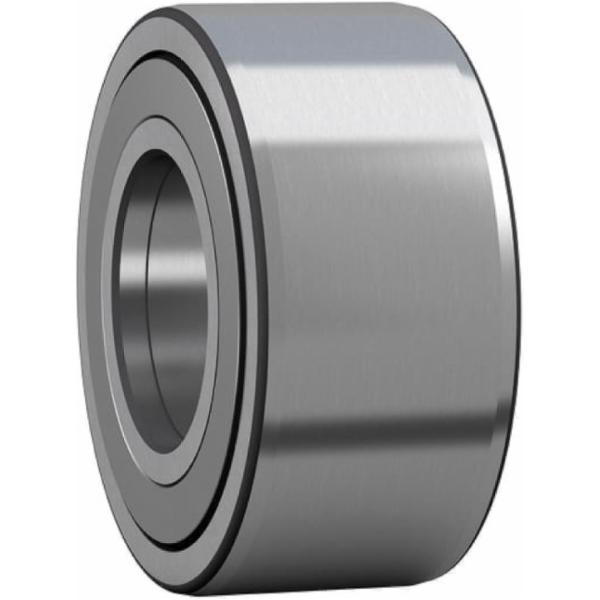

SKF NATR 25 PPXA support roller with inner ring and flange seal (Yoke type track roller) 52 x 25 x 25 mm - NATR 25 PPX

Show more features

Inner diameter

25 mm

Width

25 mm

Outer diameter

52 mm

Axial guidance of outer ring

Yes

Functional outside diameter

52 mm

Material, bearing

Bearing steel

Cage

With

Sealing type

Contact

Width, outer ring

24 mm

Lubricant

Grease

Relubrication feature

With

Basic static load rating

25 kN

Radial internal clearance

Between C2 and CN

Tolerance class

Other

Bearing part

Complete track roller

Number of flanges, outer ring

2

Sealing

Seal on both sides

Width, total

25 mm

Outer ring profile

Cylindrical

Limiting speed

2,400 r/min

Bore diameter

25 mm

Number of rows

1

Basic dynamic load rating

17.6 kN

Coating

Without

Rolling elements

Needle rollers
